Energy Savings Trust HVO
Vortex Eco: Internal

5 Year guarantee*

Vortex Eco: Internal

The Grant Vortex Eco Utility range was launched as a direct response to customer demand for a competitively priced condensing boiler.

The Vortex Eco Utility boilers have a simplified casing, control panel and pipework arrangement. Each model incorporates the latest Riello RDB burner as well as Grant’s patented stainless steel heat exchanger. The range is simple to service with the burner and combustion chambers positions towards the front of each boiler.

a Heating

Features & benefits

  • *5 year guarantee when installed by a G1 Installer (Terms and Conditions apply)
  • Models include 15-21kW, 21-26kW and 26-35kW as well as three sealed systems models in the same heating outputs
  • Achieves space heating efficiencies of 91.7 – 92.7%
  • Factory fitted condensate trap within the boiler case

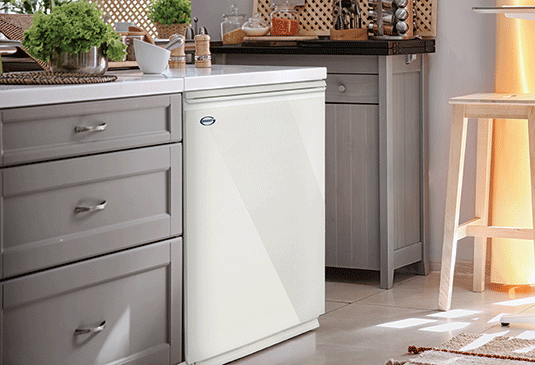

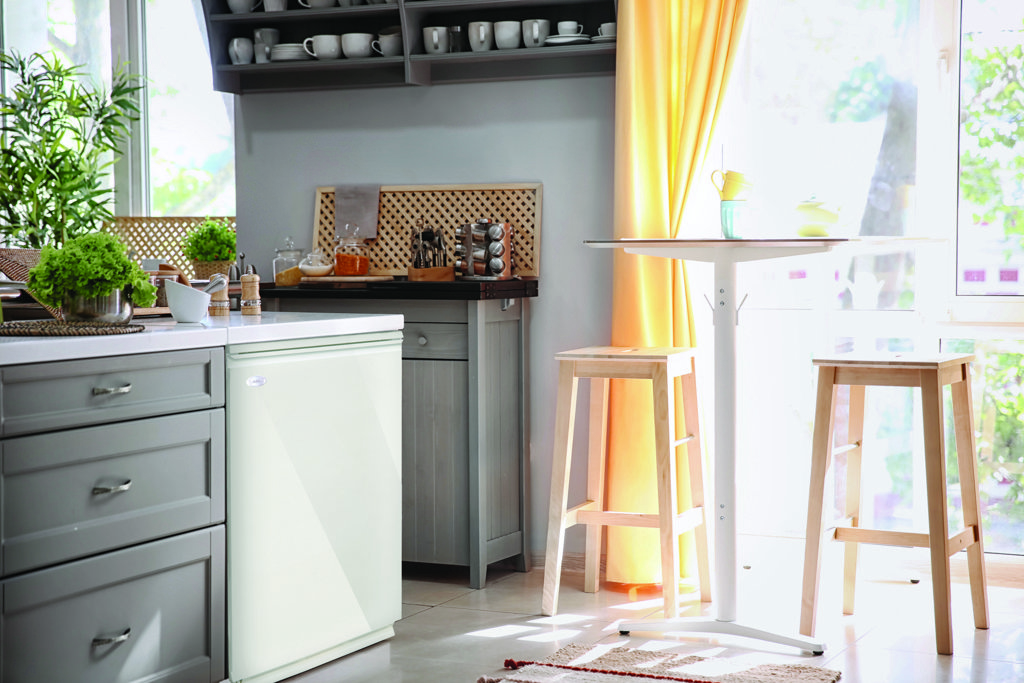

  • Well suited to utility room installations with their white casing and quiet operation
  • Sealed system models include: a factory fitted expansion vessel, filling loop, pressure gauge, automatic air vent, pressure relief valve and high efficiency circulating pump, enabling boilers to be installed without the need for a feed and expansion tank in the loft
  • Compatible with Grant EZ-Fit flue systems and can be flued from the top, rear, left or right hand side of the appliance providing flexibility with installation
  • Front service access door and key components positioned to make servicing and maintenance installer friendly
  • As with all of Grant’s Vortex oil boilers, this range is biofuel compatible (depending on the type of biofuel and % blend)
Riello Tutorial Playlist

Riello Tutorial Playlist

All of Grant’s floor standing oil fired boilers feature the latest Riello burner technology. To help heating engineers and installers, a series of videos produced by Riello about their RDB BX Burner are available on Grant UK’s YouTube Channel. The videos cover a range of topics from installation and commissioning through to maintenance and fault finding. Each video is under four minutes long, so they are ideal to view as quick references.

To watch these videos, please visit Grant UK's YouTube Channel.

Specification

Product code
Model
Set Output
Max Output
Weight
Height
Width
Depth
Efficiency
NOx Emissions
Tappings Flow/Return
Burner
Energy Rating
Load Profile
Energy Label
Product Fiche
VTXECO15/21 Grant Vortex Eco Utility 15-21 21kW 21kW 97kg 860mm 430mm 605mm 92.7 Class 2 - - a Heating - View View
VTXECO21/26 Grant Vortex Eco Utility 21-26 23.5kW 26kW 97kg 860mm 430mm 605mm 91.7 Class 2 - - a Heating - View View
VTXECO26/35 Grant Vortex Eco Utility 26-35 31kW 35kW 127kg 900mm 470mm 603mm 92.4 Class 2 - - a Heating - View View
VTXSECO15/21 Grant Vortex Eco Utility System 15-21 21kW 21kW 123kg 860mm 430mm 605mm 92.7 Class 2 - - a Heating - View View
VTXSECO21/26 Grant Vortex Eco Utility System 21-26 23.5kW 26kW 123kg 860mm 430mm 605mm 91.7 Class 2 - - a Heating - View View
VTXSECO26/35 Grant Vortex Eco Utility System 26/35 31kW 35kW 138kg 900mm 470mm 603mm 92.4 Class 2 - - a Heating - View View
