Specification Hub

Grant UK BIM Library

Welcome to the Grant UK Product Building Information Modelling (BIM) Library. View and download our collection of BIM objects for air source heat pumps, including our Aerona R32 and R290 heat pumps, and heat emitters. Our BIM Library is designed to help you seamlessly plan your heating projects. Whether you are an architect, specifier or developer, our BIM library provides the resources you need to bring your vision to reality.

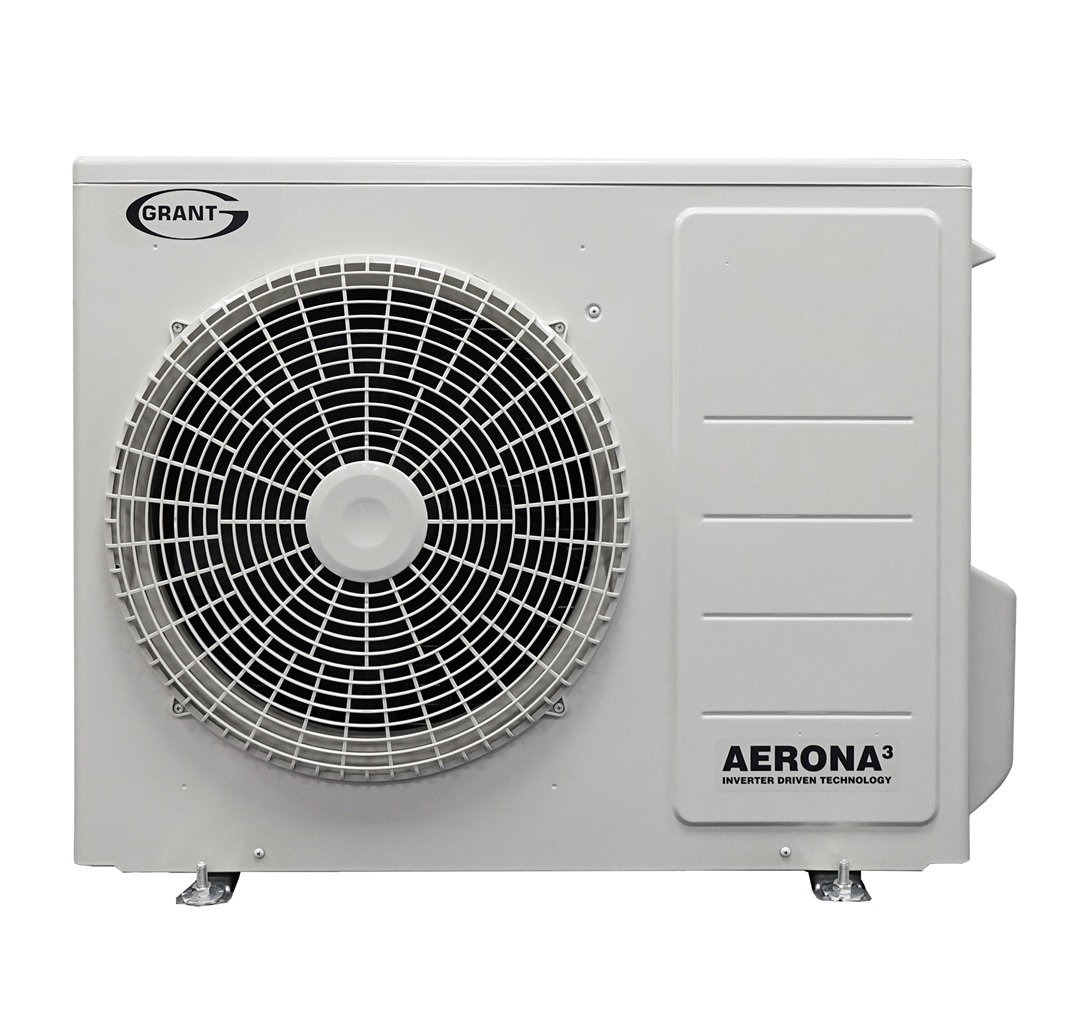

Grant Aerona³ 6kW R32 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona³ 6kW R32 Air Source Heat Pump

6kW inverter driven R32 air-to-water heat pump
Compact size and footprint
Connect & Notify approved

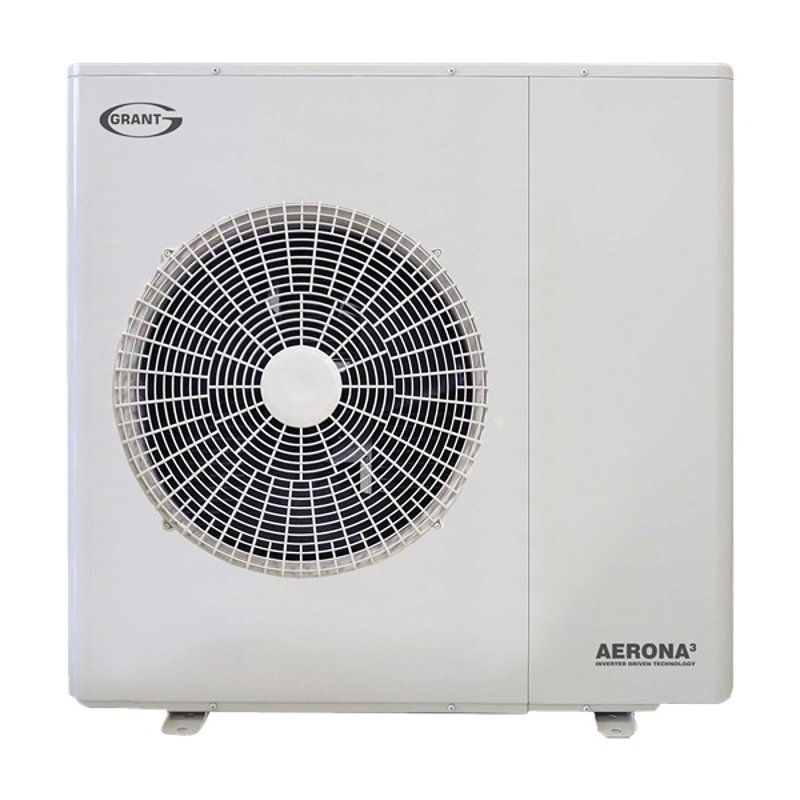

Grant Aerona³ 10kW R32 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona³ 10kW R32 Air Source Heat Pump

10kW inverter driven air-to-water heat pump
Highly efficient with 5.20 SCOP (35°C water)
Connect & Notify approved

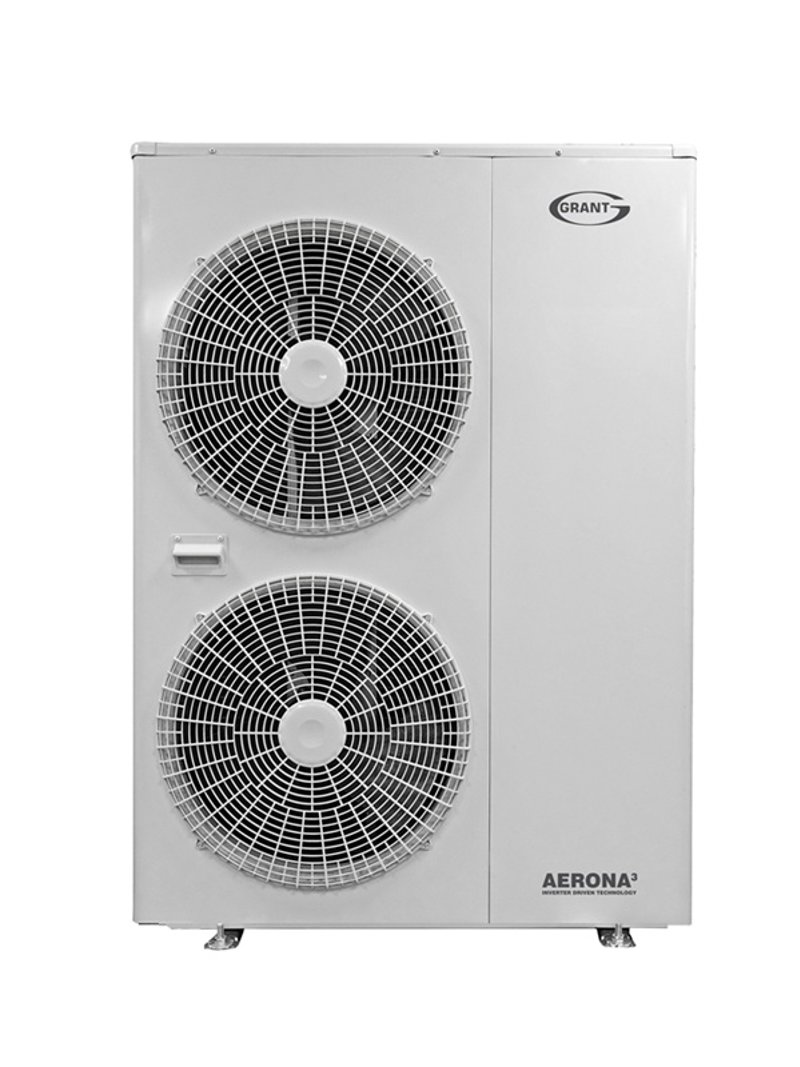

Grant Aerona³ 13kW R32 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona³ 13kW R32 Air Source Heat Pump

13kW inverter driven air-to-water heat pump
Quiet Mark accredited
Connect & Notify approved
Grant Aerona³ 17kW R32 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona³ 17kW R32 Air Source Heat Pump

17kW inverter driven air-to-water heat pump
Quiet Mark accredited
Highly efficient operation

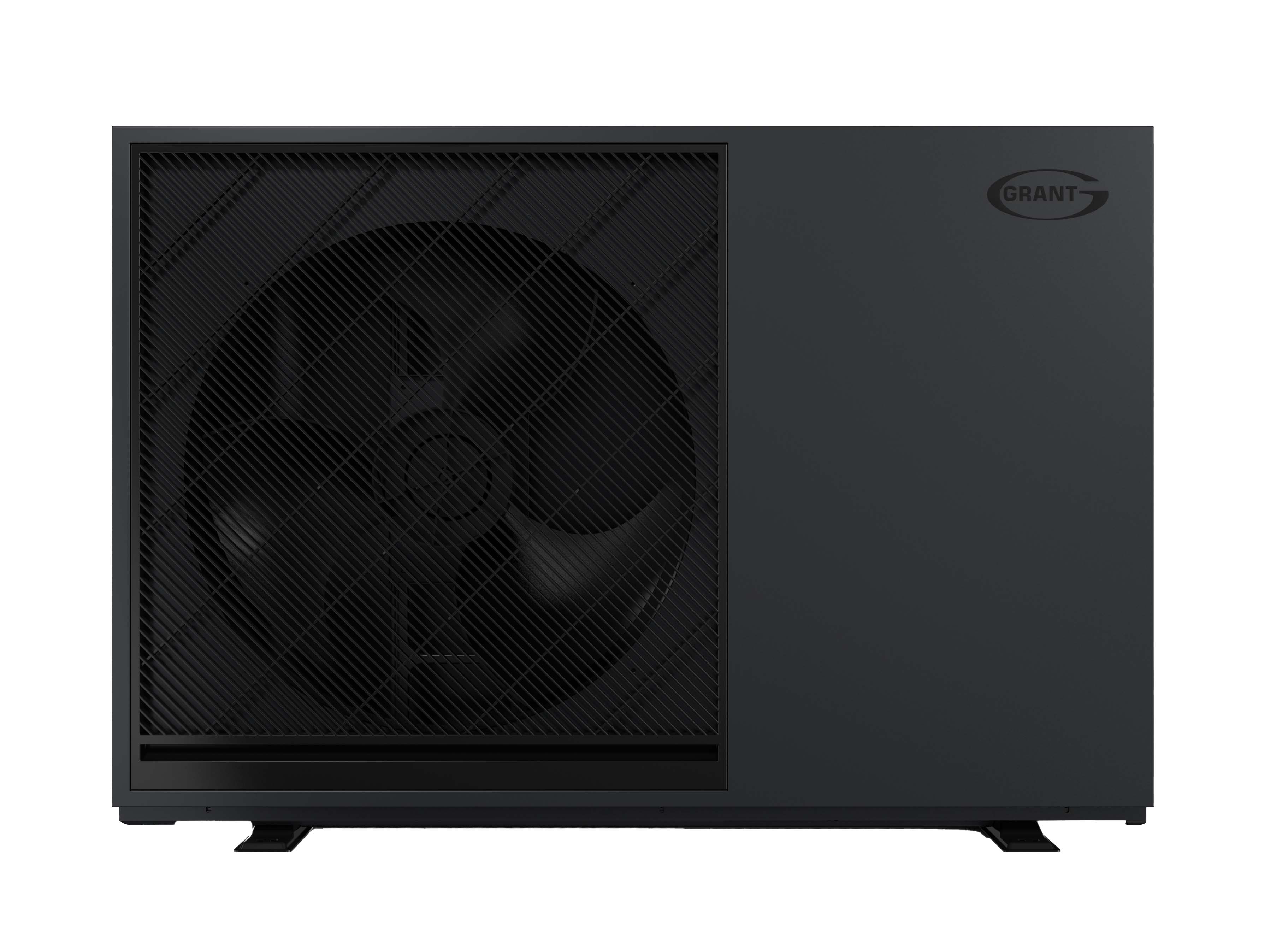

Grant Aerona 290 4kW R290 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona 290 4kW R290 Air Source Heat Pump

4kW inverter driven air-to-water R290 heat pump
Uses the more environmentally friendly R290 refrigerant
Quiet Mark accredited and Connect & Notify approved
Grant Aerona 290 6.5kW R290 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona 290 6.5kW R290 Air Source Heat Pump

6.5kW inverter driven air-to-water R290 heat pump
Uses the more environmentally friendly R290 refrigerant
Quiet Mark accredited and Connect & Notify approved
Grant Aerona 290 9kW R290 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona 290 9kW R290 Air Source Heat Pump

9kW inverter driven air-to-water R290 heat pump
Uses the more environmentally friendly R290 refrigerant
Quiet Mark accredited and Connect & Notify approved

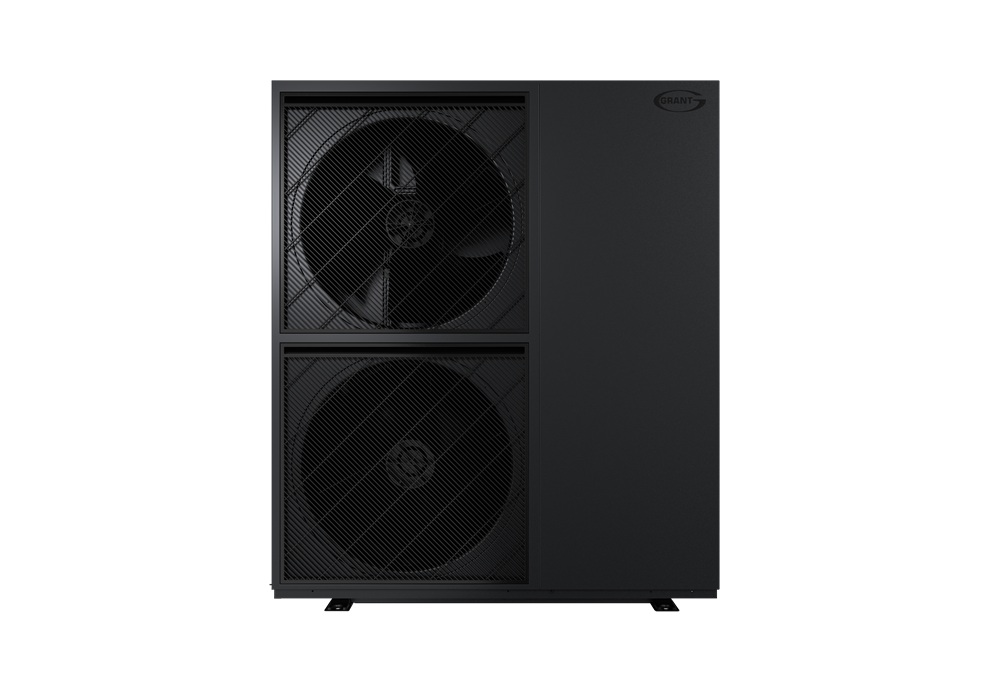

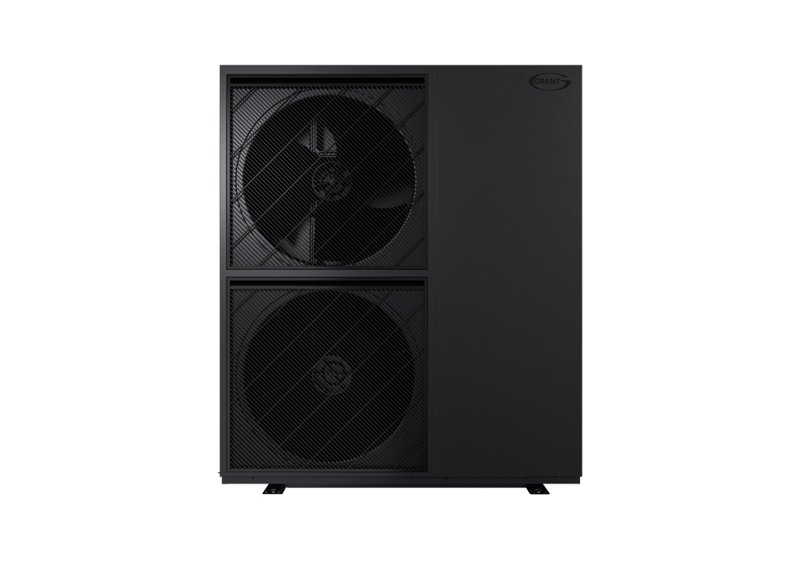

Grant Aerona 290 12kW R290 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona 290 12kW R290 Air Source Heat Pump

12kW inverter driven air-to-water R290 heat pump
Uses the more environmentally friendly R290 refrigerant
Quiet Mark accredited and Connect & Notify approved
Grant Aerona 290 15.5kW R290 Air Source Heat Pump
Air Source Heat Pumps

Grant Aerona 290 15.5kW R290 Air Source Heat Pump

15.5kW inverter driven air-to-water R290 heat pump
Uses the more environmentally friendly R290 refrigerant
Quiet Mark accredited and Connect & Notify approved

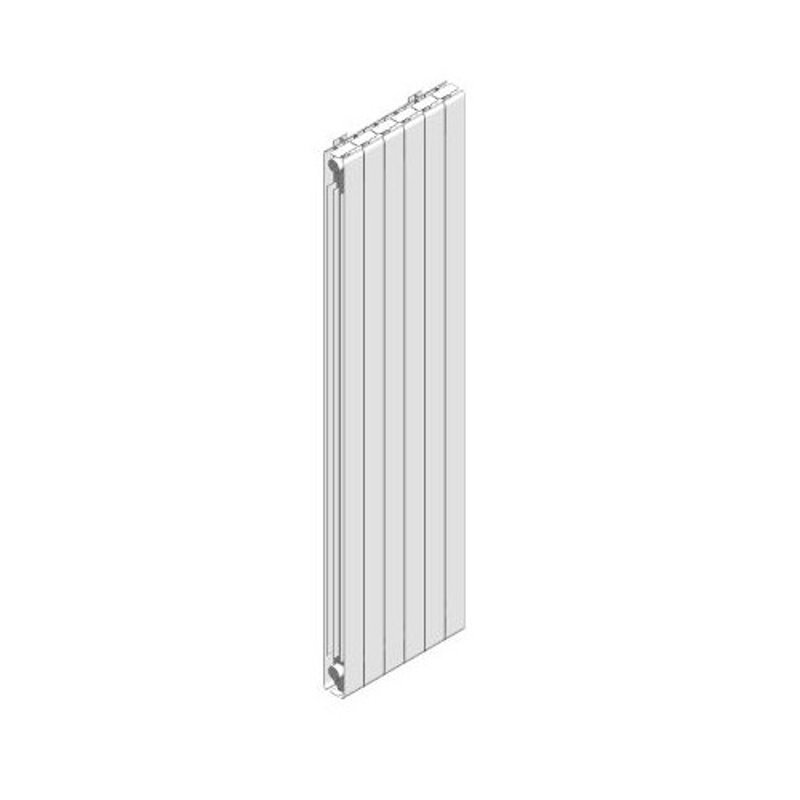

Afinia Vertical Radiators
Aluminium Radiators

Afinia Vertical Radiators

Available in two heights (1,842mm and 2,042mm)
More efficient than traditional radiator materials
Complies with European Standards (UNI EN 44-2)

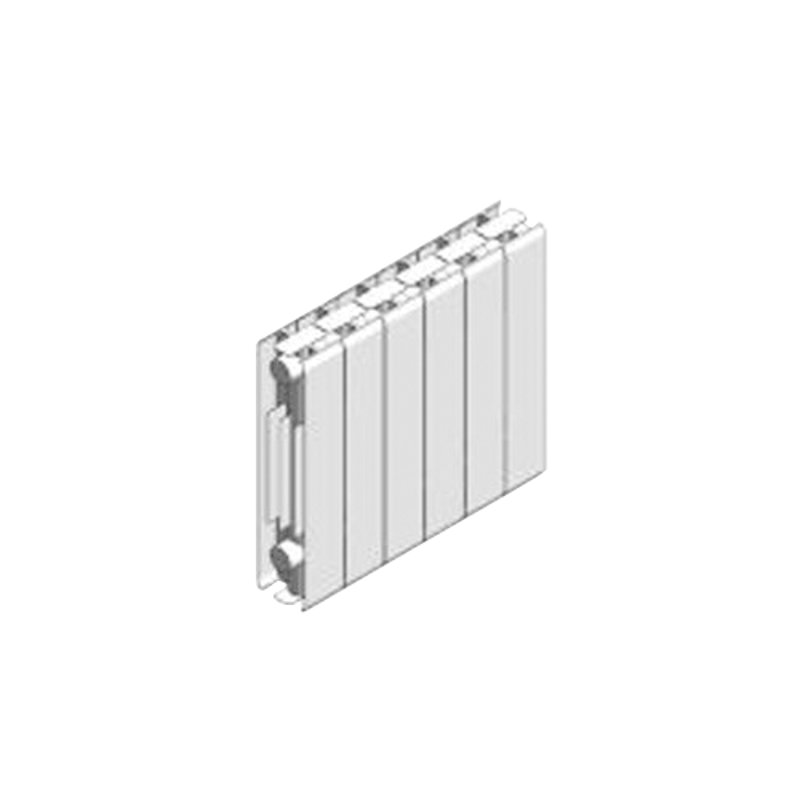

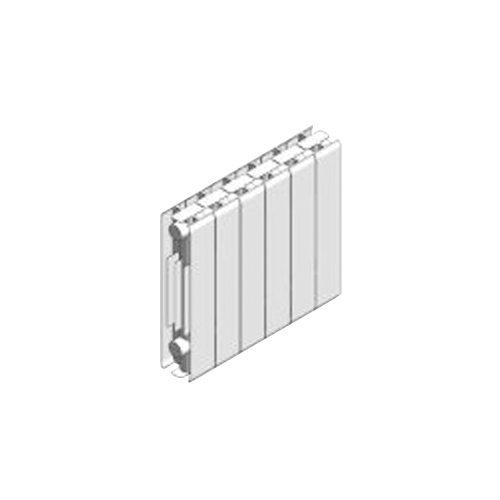

Afinia Horizontal Radiators
Aluminium Radiators

Afinia Horizontal Radiators

Available in three heights (430mm, 580mm and 680mm)
More efficient than traditional radiator materials
Complies with European Standards (UNI EN 44-2)

Understanding BIM Objects

A BIM object is a data file that provides a digital 3D representation of a product or material that can be inserted into project planning software for build projects. Each BIM object file includes core information and functional data about the product as well geometry to accurately represent its physical characteristics and visualisation data for the product’s appearance. These data rich files include material properties, performance data, manufacturer information and energy efficiency ratings and each BIM object is designed to simulate the real product in design software.

Why use Grant BIM Objects?

Grant’s heat pump BIM objects and radiator BIMs are component objects with a fixed geometrical shape. When you download one of our BIM files above, you will be able to seamlessly incorporate low carbon heating systems into your plans with a stylish and highly efficient choice of heat emitter. Each of our Building Information Modelling objects contain detailed product specification to help you precisely plan upcoming build projects and support you in fulfilling regulatory standards such as the Future Homes Standard.

Support using Grant BIM Objects

Our BIM objects are in .rfa format and are designed for use with Revit BIM programme software. Individual BIM files are available for each of the Aerona air source heat pump models, including R32 heat pumps and R290 heat pumps, as well separate BIM objects for the horizontal and vertical radiator options. Simply press the ‘Download’ icon button to access the BIM objects and for further technical specification details for any of the products, please select the ‘Product Details’ button next to the relevant model.
