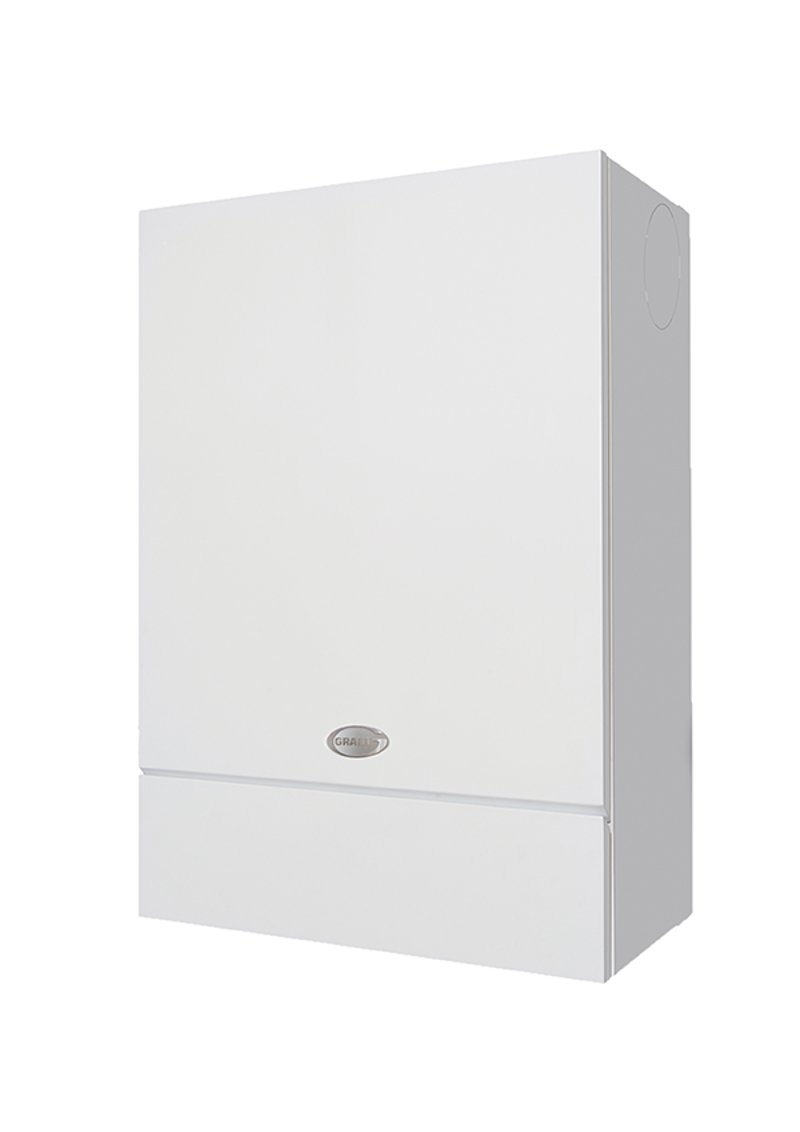

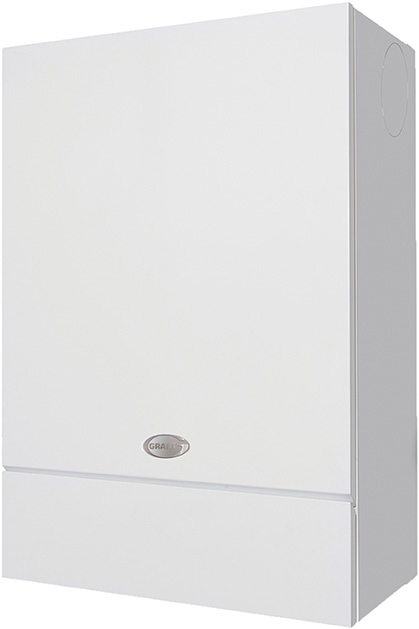

Vortex Eco: Internal Wall Hung
Grant’s Vortex wall hung oil-fired boiler range comprises four internal and four external models.
Available in outputs ranging from 12-21kW, in both sealed system and open-vented system variants, these new appliances are pre plumbed and encompass Grant’s patented Vortex stainless steel heat exchanger and turbulator baffle system.
a HeatingFeatures & benefits
Vortex Eco wall hung models feature the latest version of the Grant Vortex stainless steel heat exchanger and baffle system and come in outputs ranging from 12–21kW with sealed system options.
Internal wall hung models fit with Grant’s EZ-Fit low level, high level and vertical flue systems, so almost any installation situation can be catered for.
Sealed System Models
Grant Vortex Eco Wall Hung boilers are also available in sealed system versions. These include a factory fitted expansion vessel, filling loop, pressure gauge, automatic air vent, pressure relief valve and high efficiency circulating pump, enabling boilers to be installed without the need for a feed and expansion tank in the loft.
- Award winning range
- Outputs ranging from 12–21kW
- 91.6 – 91.9% Gross SAP2009 annual efficiency
- 5 year guarantee when installed by a G1 accredited installer (T&C’s apply)
- Exceptionally quiet operation
- Wall mountable
- Unique Grant Vortex stainless steel heat exchanger
- Compliant with September 2018 low NOx legislation
Low NOx Ready
On 26th September 2018, the next phase of the EU’s Energy-related Products Directive will come into effect. New legislation will set maximum nitrogen oxides (NOx) emission levels that space heaters will need to meet, reducing the overall NOx emissions produced from heating. For oil-fired boilers, the NOx emissions target will be a maximum of 120mg/kWh so all oil boilers placed on the market by the manufacturer on or after 26th September will need to be compliant.
One of the overarching objectives of the new legislation is to help improve the air quality by reducing pollution. In response to both Government regulations and a growing demand from homeowners, manufacturers have continuously explored ways to make their products more efficient and sustainable. The good news is that advances with burner technology coupled to Grant’s efficient boiler designs have enabled all of our Vortex Pro and Eco boiler ranges to achieve these new targets with virtually no visible change to the existing line up.
Help me find the right heating system
Find the right heating system for your home using our product configurator tool
Use toolFind an engineer
Search our extensive engineer network and locate a technician in your area
Specification
Product code |
Model |
Set Output |
Max Output |
Weight |
Height |
Width |
Depth |
Efficiency |
NOx Emissions |
Tappings Flow/Return |
Burner |
Energy Rating |
Load Profile |
Energy Label |
Product Fiche |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VTXWH12/16 | Grant Vortex Eco Wall Hung 12-16 | 14kW | 16kW | 86kg | 840mm | 580mm | 322mm | 90.13 | Class 2 | 22mm | Ecoflam | a Heating | - | View | View |
| VTXWH16/21 | Grant Vortex Eco Wall Hung 16-21 | 18.7kW | 21kW | 86kg | 840mm | 580mm | 322mm | 90.52 | Class 2 | 22mm | Ecoflam | a Heating | - | View | View |
| VTXSWH12/16 | Grant Vortex Eco Wall Hung System 12-16 | 14kW | 16kW | 98kg | 840mm | 580mm | 322mm | 90.13 | Class 2 | 22mm | Ecoflam | a Heating | - | View | View |
| VTXSWH16/21 | Grant Vortex Eco Wall Hung System 16-21 | 18.7kW | 21kW | 98kg | 840mm | 580mm | 322mm | 90.52 | Class 2 | 22mm | Ecoflam | a Heating | - | View | View |
Downloads
Accessories
Grant Vortex Mag One Magnetic Filter
- Filters magnetite and non-ferrous debris
- Simple to install, easy to clean, easy to drain design
- 12000 gauss neodymium magnet

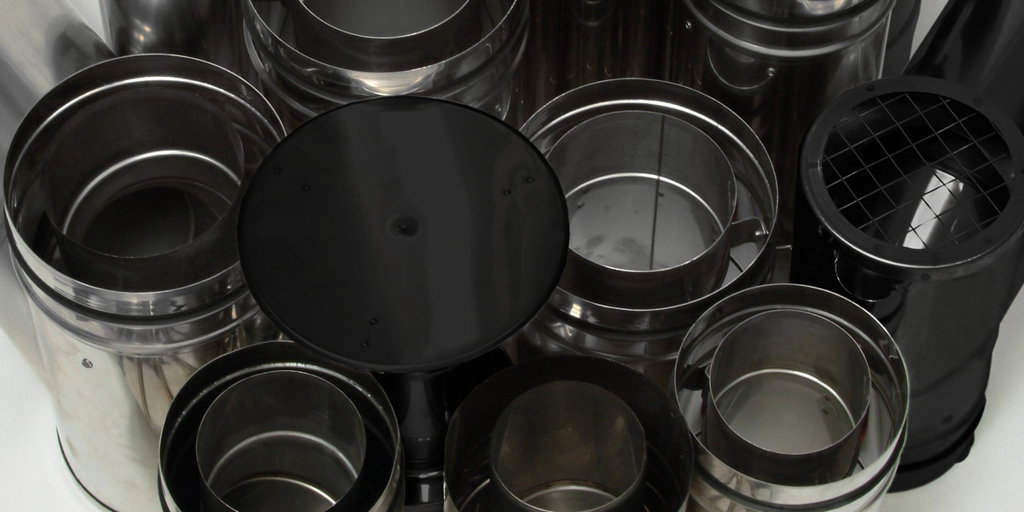

EZ Flues: Internal low level balanced flues (yellow system)
- Suitable for Internal Grant Vortex boilers up to 70kW
- Self-sealing ducts requiring no silicone or tape
- Optional plume diverter (maximum height = 6 metres)
EZ-Fit Internal Vertical Balanced Flues (White System)
- Suitable for Internal Grant Vortex boilers up to 70kW
- Unique connection system ensures easy assembly
- Supplied as a complete kit
EZ-Fit Internal High Level Balanced Flues (White System)
- Suitable for Internal Grant Vortex boilers up to 70kW
- Maximum total flue length = 10 metres (deduct 1 metre for each additional 45° elbow used)
- Flue may be extended horizontally and vertically
EZ-Fit Flexible Vertical Balanced Flues (Red System)
- Suitable for Grant Vortex boilers up to 26kW
- Quick and simple to install
- Available in 6, 8, 10 and 12 metre packs
EZ-Fit Vertical conventional flues (Orange System)
- Suitable for Grant Vortex boilers up to 70kW
- Designed to enable an existing chimney to be utilised.
- Available in 6, 8, 10, 11, 12, 14 and 16 metre flexi packs
