Heat pump installation pack A from Grant UK

Grant Aerona³ accessories

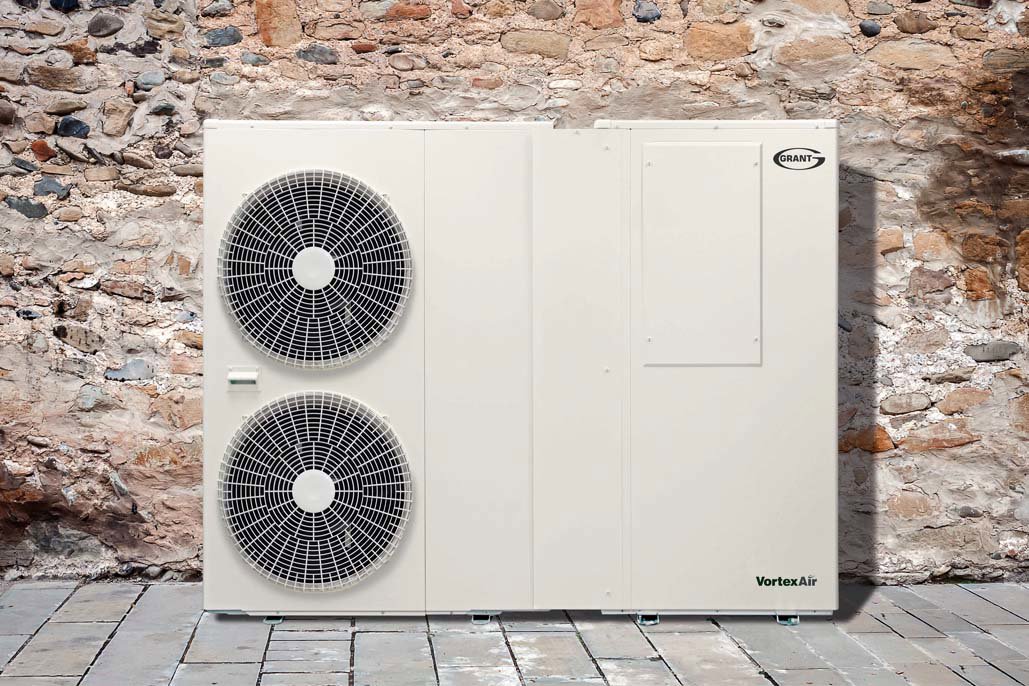

To accompany both the Aerona³ and VortexAir Hybrid ranges, Grant supply a range of accessories which are compatible for installation with all of the models. These accessories are available to purchase individually and some are available as part of a heat pump installation pack.

For Aerona³ heat pump installations, installers will also need to order one of Grant UK’s Aerona Controller Kits. Each kit either features the Aerona Smart Controller or the Aerona Remote Controller. The Aerona Smart Controller is an alternative to the Aerona Remote Controller and can control up to three heating zones as well as the domestic hot water, while also incorporating heating curve configuration and sophisticated weather compensation to optimise an Aerona heat pump’s operation.

Product
Information

Features & benefits

  • Sealed system kits are available to suit all Aerona³ heat pump models and they are available in three sizes: 12 litre, 18 litre and 50 litre. (Part codes: HPAWSSK12 / HPAWSSK18 / HPAWSSK50)

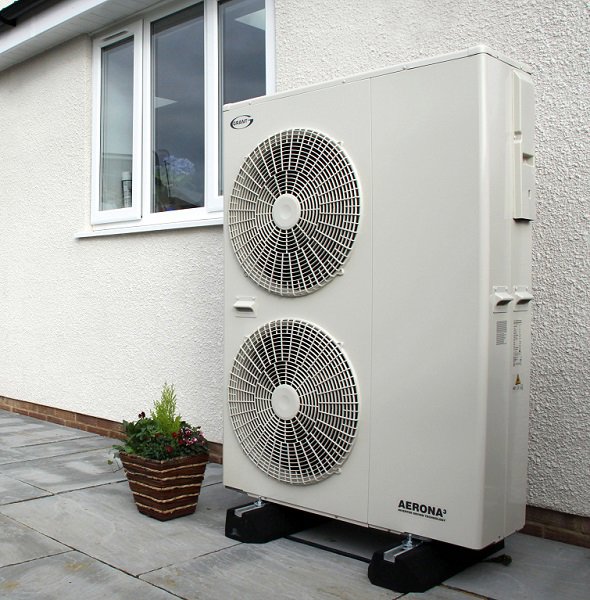

  • The flexi-foot kit with fixings is supplied in a pack comprising of two 600mm feet for mounting the Aerona³. The kit serves as anti-vibration as well raising the heat pump off the ground. When installing these with a VortexAir Hybrid when both the boiler and heat pump are sited together externally, two kits will be required totalling four feet. (Part Code: HPIDFOOT/KIT2)

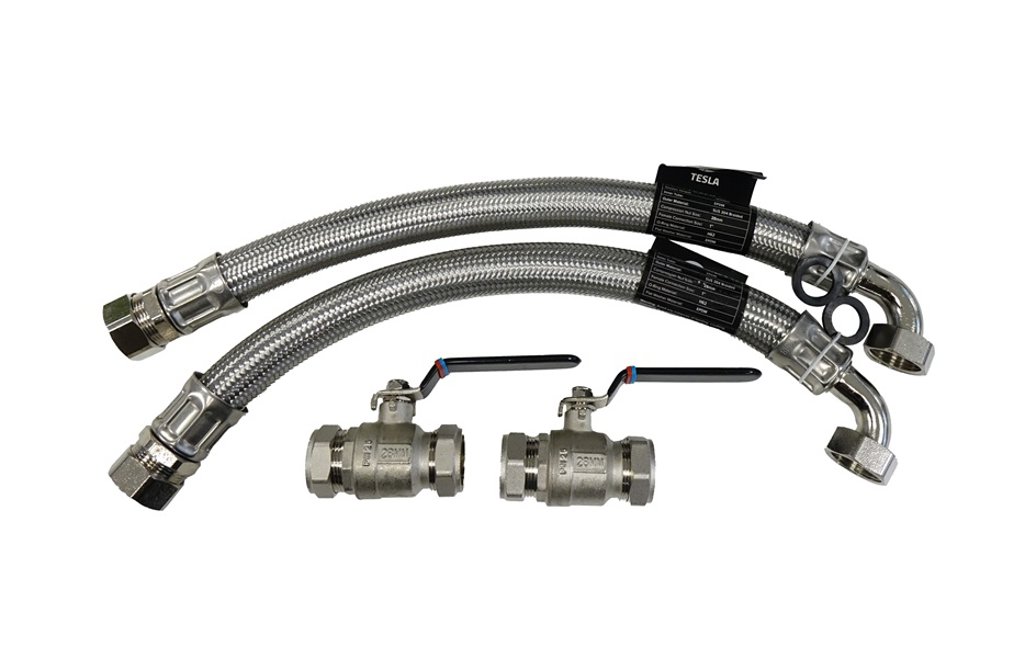

  • The through wall insulation kit is a heavy duty insulation to fit the 22-28mm flexi hoses used with the Aerona³. (Part Code: HPIDINSU/KIT)
  • Hot Water Priority Relay (up to two space heating zones): this relay gives hot water priority over the central heating system. When there is a demand, the Hot Water Priority Relay will automatically close the valve to the heating system to allow the hot water cylinder to be heated using the heat pump’s full output. When the hot water demand is satisfied, the Relay allows the valve to the heating system to open and the heat pump returns to providing space heating as required. (Part code: HPWPR1)
  • Hot Water Priority Relay (up to four space heating zones): for heating systems with two central heating zones (such as one upstairs and one downstairs), Grant supply this up to four zone hot water priority relay which enables the hot water demand to be prioritised over two central heating zones instead of one (Part code: HPWPR2)
  • Grant’s 7 day immersion programmer automatically switches on the cylinder’s immersion element, either daily or weekly, for a short period of time, taking the water up to the required temperature set by the immersion thermostat to provide anti-legionella protection. (Part code: HPIDT205)
  • Domestic Hot Water Programmer: this automatically controls the heat pump domestic hot water operating periods. The integrated timer provides up to four on/off periods per day. (Part Code: HPIDTM04)
  • The Grant System Combined Volumiser/Low Loss Header creates hydraulic separation therefore maintaining the correct flow rate through the heat pump while providing a suitable volume of system water to allow the heat pump to fully modulate. Includes 3kW supplementary element and relay (Part Code: HPIDSYSLLHKIT)

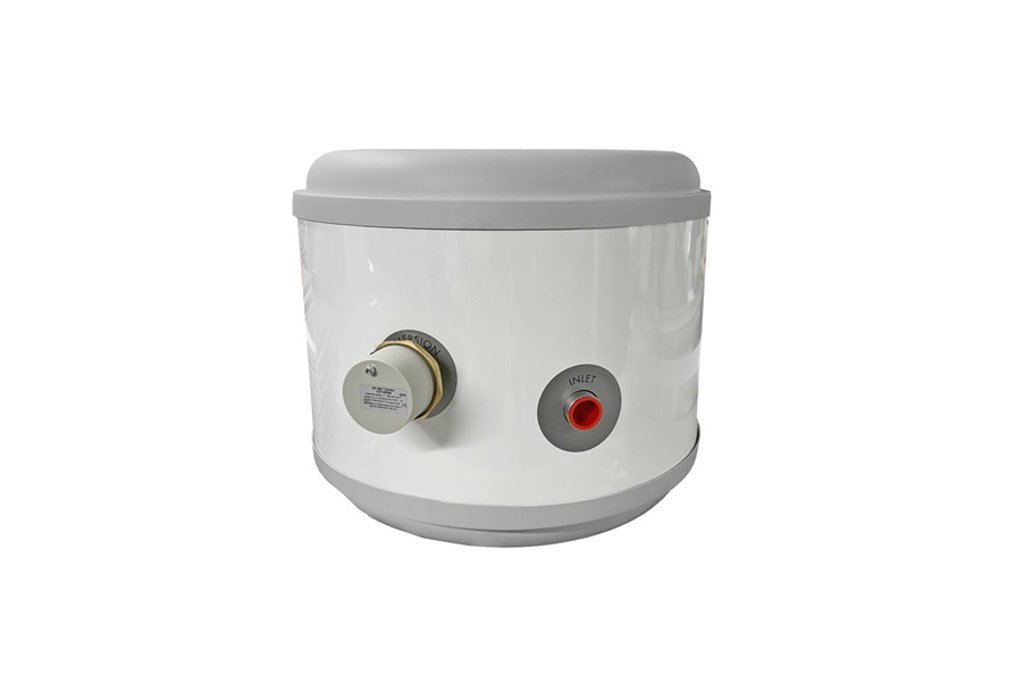

  • If the Combined Volumiser/Low Loss Header cannot be fitted inside, a 30 litre External Volumiser can be supplied to sit behind the heat pump. Connected to the flow from the heat pump into the flow of the system, this volumiser provides a minimum volume of water to allow the heat pump to control its modulation and it comes complete with 3kW supplementary heater and relay (Part code: HPIDVOL30EXT for 10kW, 13kW & 17kW units or HPIDVOL30EXT6 for 6kW units)
  • Grant's EP001 wiring centre centralises the wiring for up to four heating zones and one domestic hot water zone providing a convenient solution for multi-zone wiring (Part Code: EP001)
Accessories packs for Grant heat pump installations

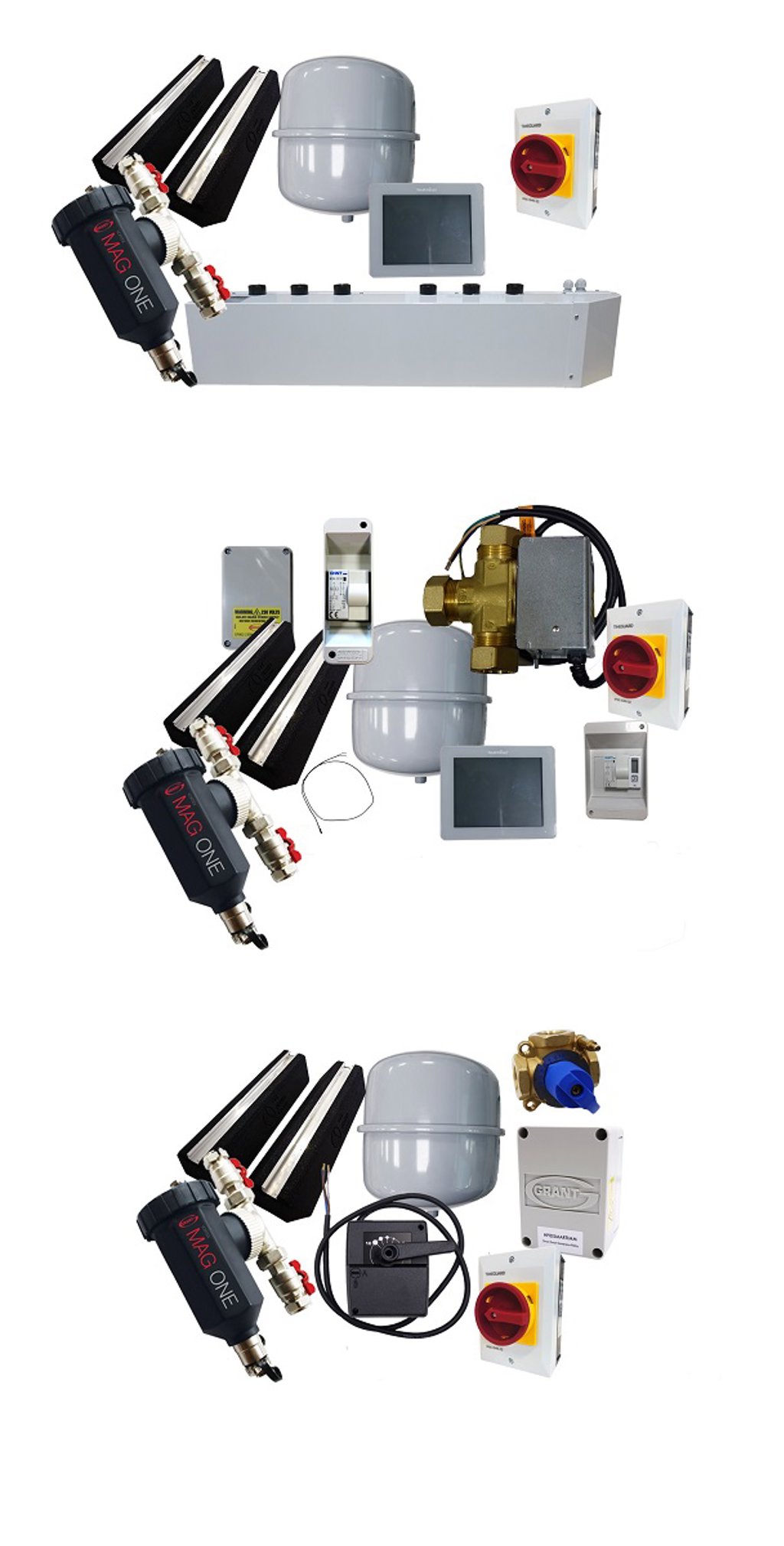

Aerona³ Installation Packs

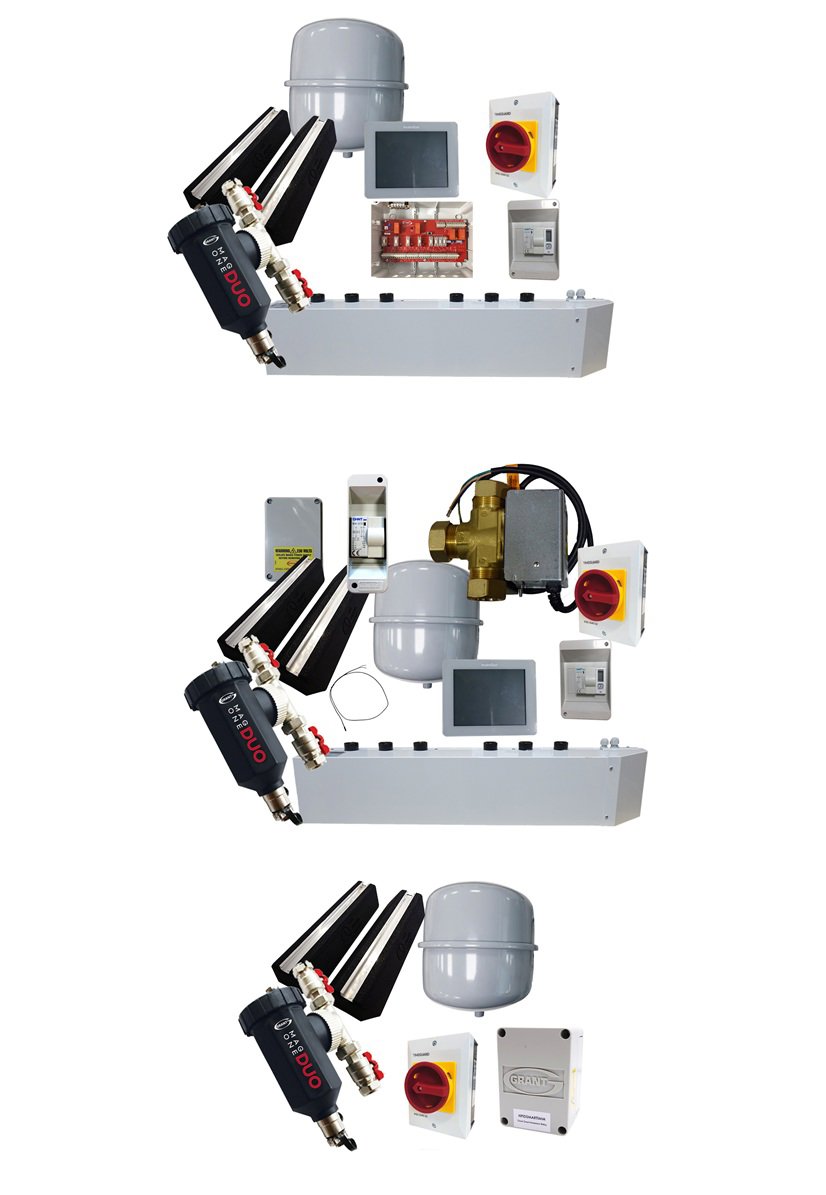

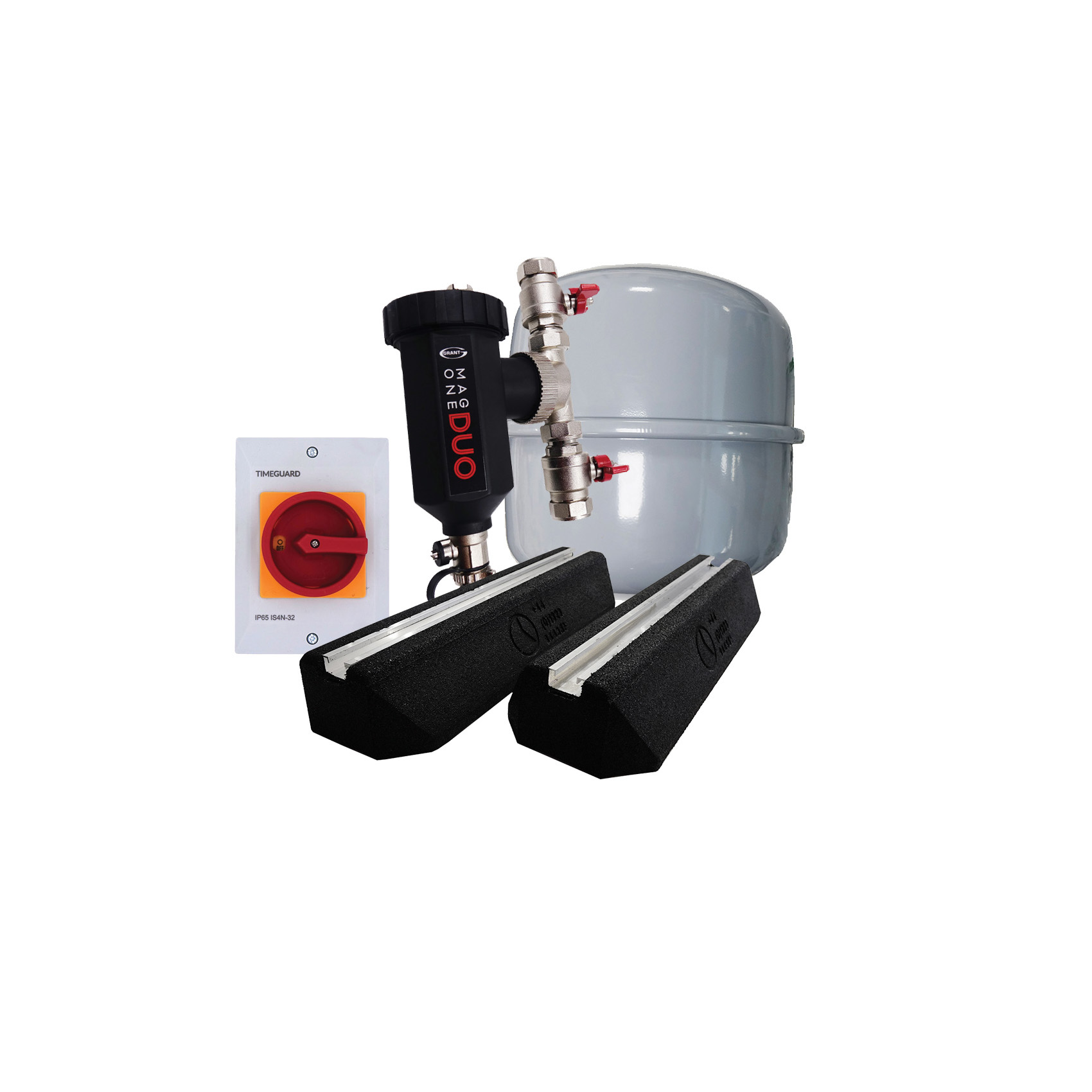

Installation Packs are available which are designed to make life easier for the installer. Each pack is designed to suit particular system configurations and they include the essential accessories needed for a heat pump installation.

The following packs are suitable for installation with the Aerona Remote Controller Kits (Part Codes HPIDR32CON6 / HPIDR32CON10 / HPIDR32CON1317):

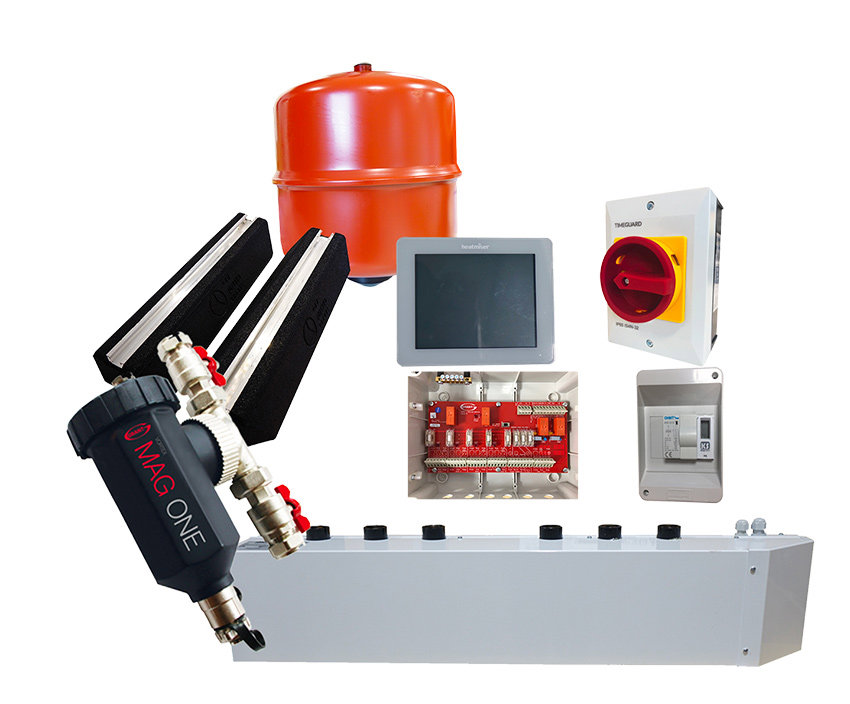

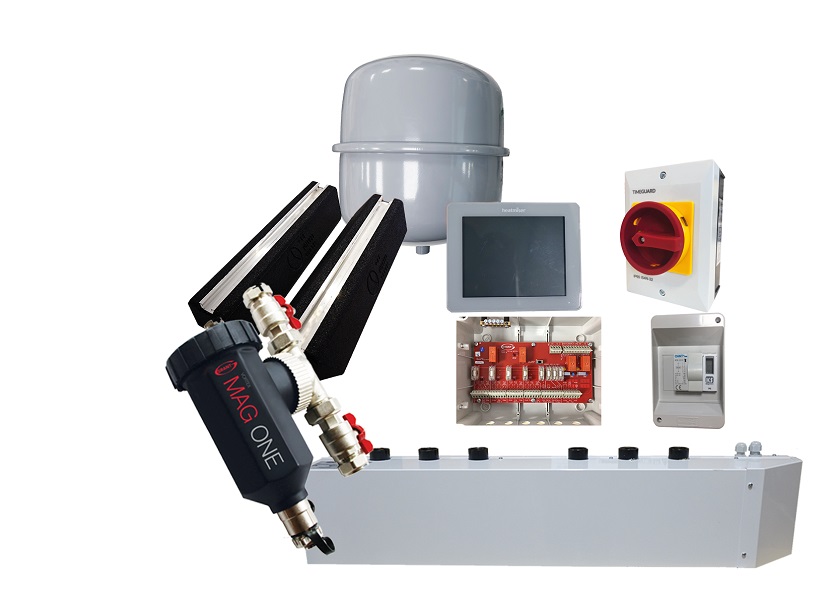

  • Installation Pack A (HPIDR32PACKA) is suitable for S-Plan systems using non pre-plumbed cylinders and includes the Grant System Combined Volumiser/Low Loss Header
  • Installation Pack K (HPIDR32PACKK) is suitable for S-Plan systems using non pre-plumbed cylinders*

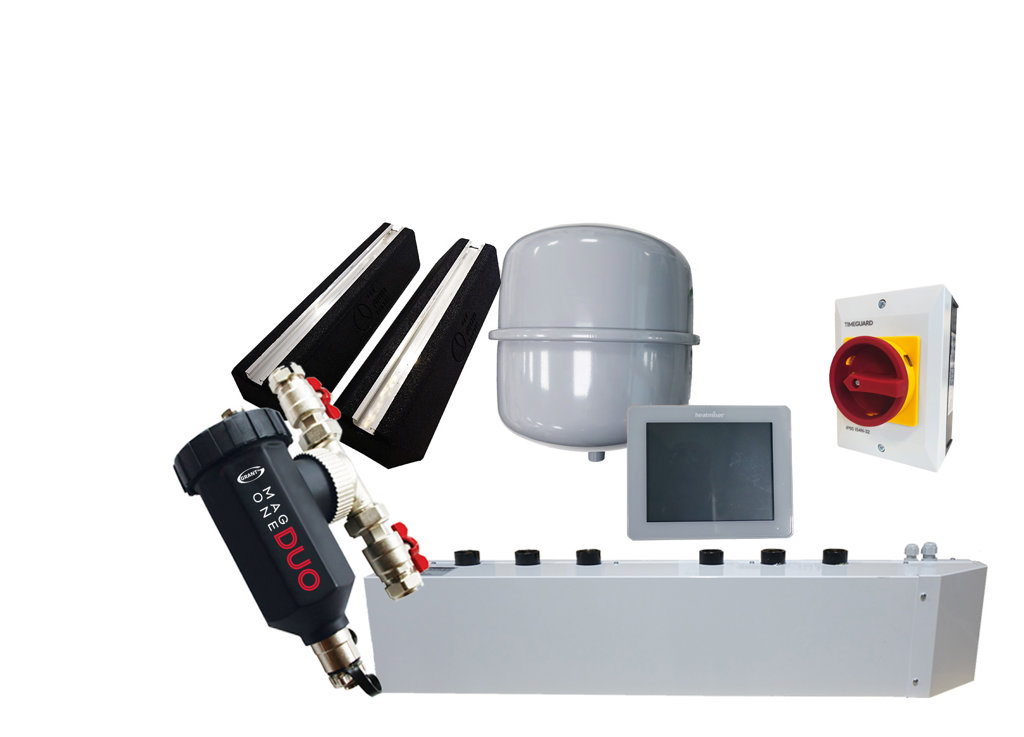

  • Installation Pack B (HPIDR32PACKB) is suitable for S-Plan systems using pre-plumbed cylinders and includes the Grant System Combined Volumiser/Low Loss Header
  • Installation Pack L (HPIDR32PACKL) is suitable for S-Plan systems using pre-plumbed cylinders*
  • Installation Pack C (HPIDR32PACKC) is suitable for Direct systems using non pre-plumbed cylinders and includes the Grant System Combined Volumiser/Low Loss Header

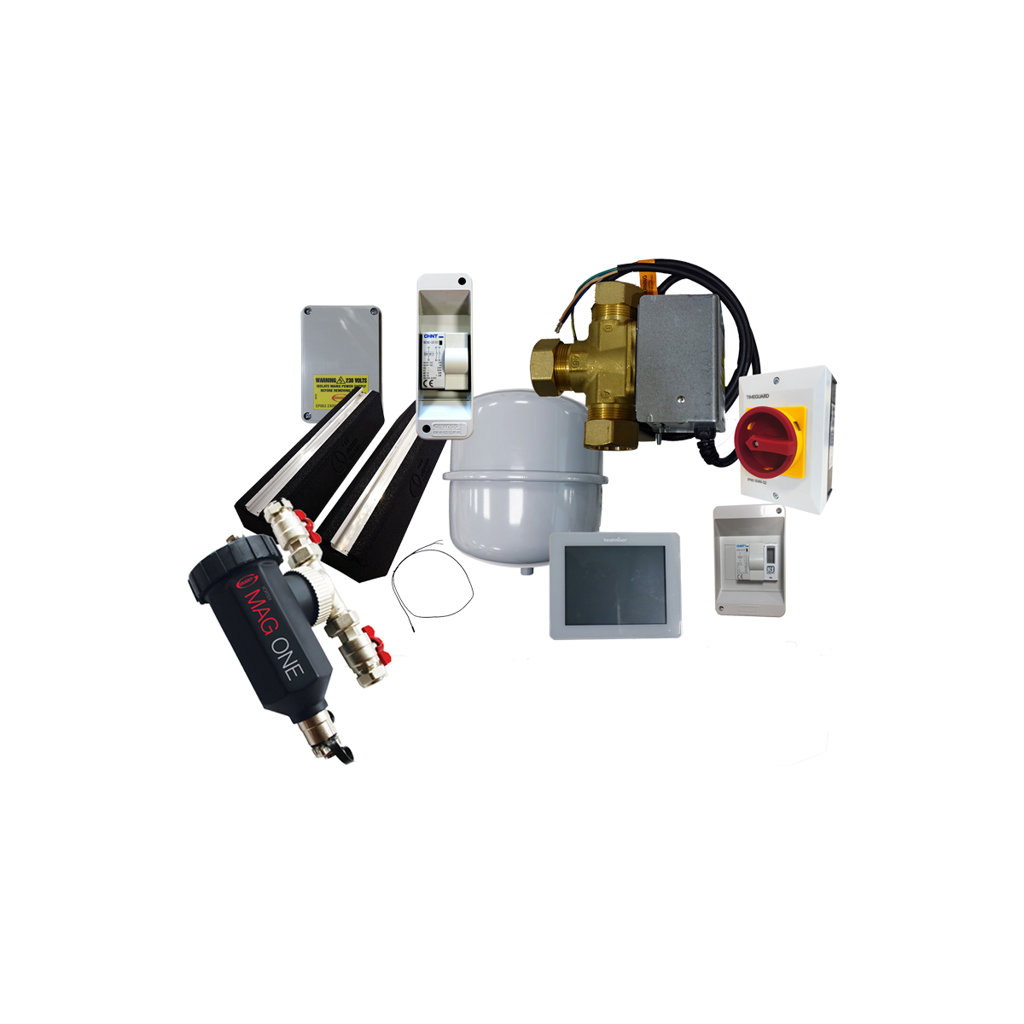

  • Installation Pack M (HPIDR32PACKM) is suitable for Direct systems using non pre-plumbed cylinders*

The following packs are suitable for installation with the Aerona Smart Controller Kits (Part Codes HPIDR32SMART6 / HPIDR32SMART10 / HPIDR32SMART1317):

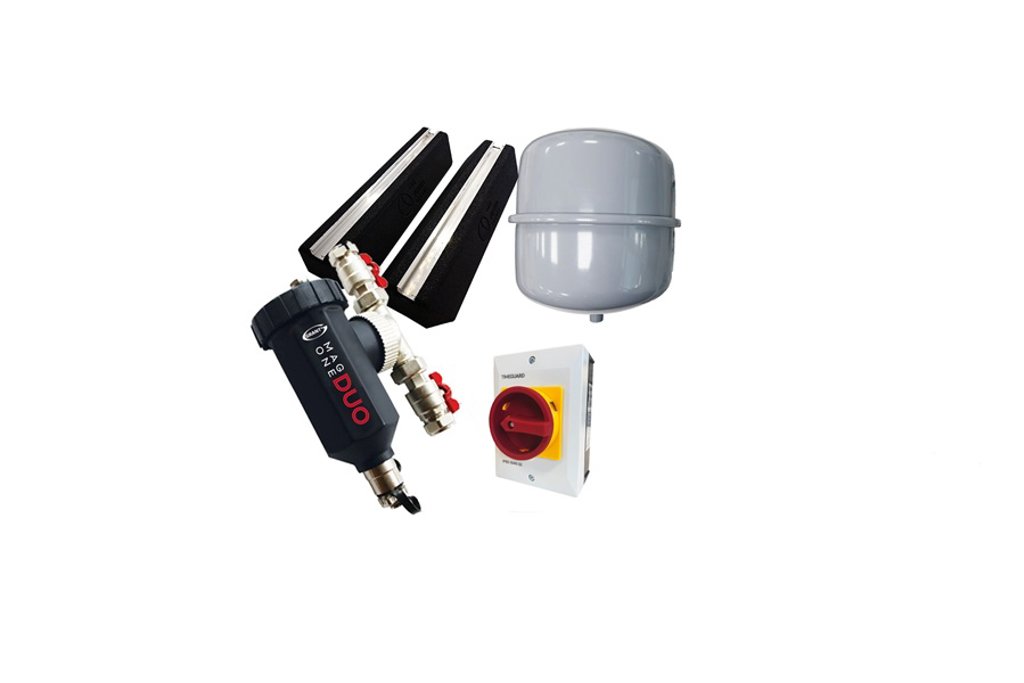

  • Installation Pack P (HPIDR32PACKP) is suitable for Direct S-Plan systems using a 2 Port Valve and a non pre-plumbed cylinder*

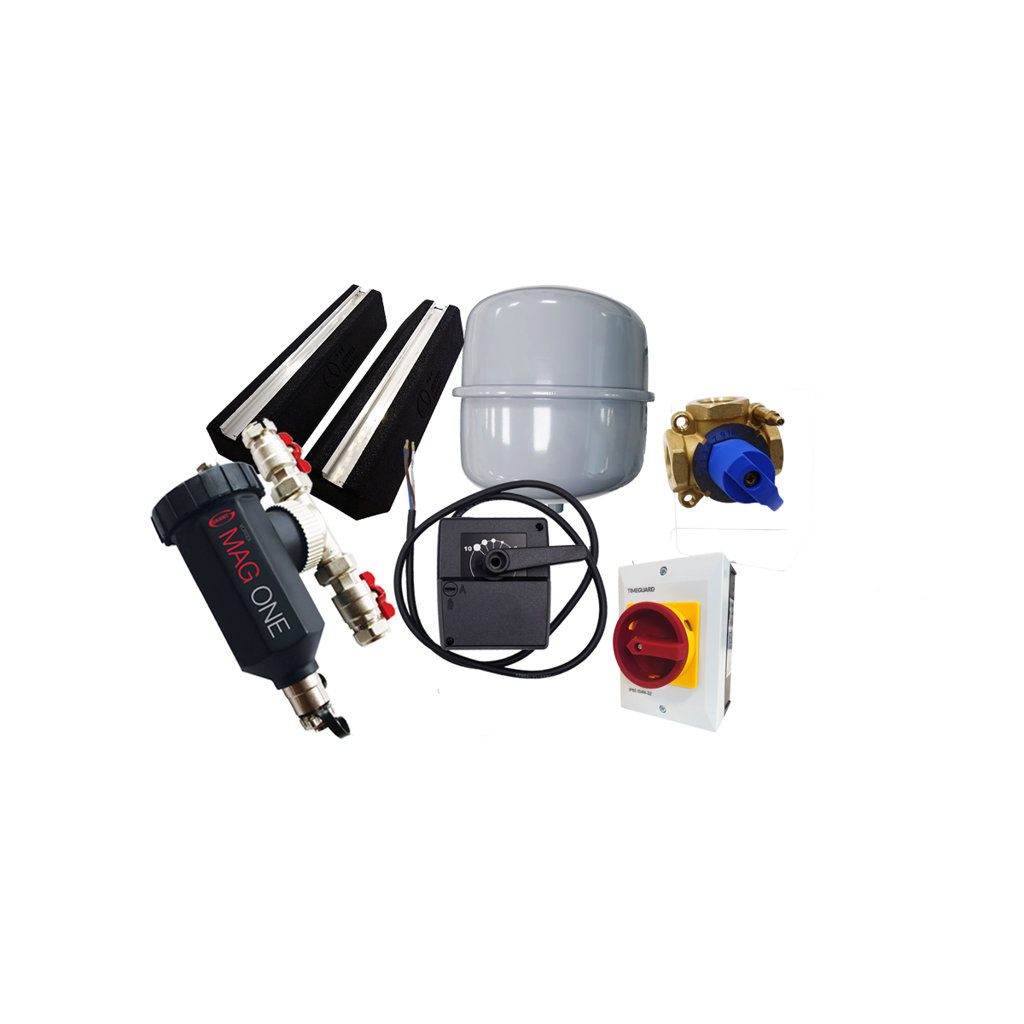

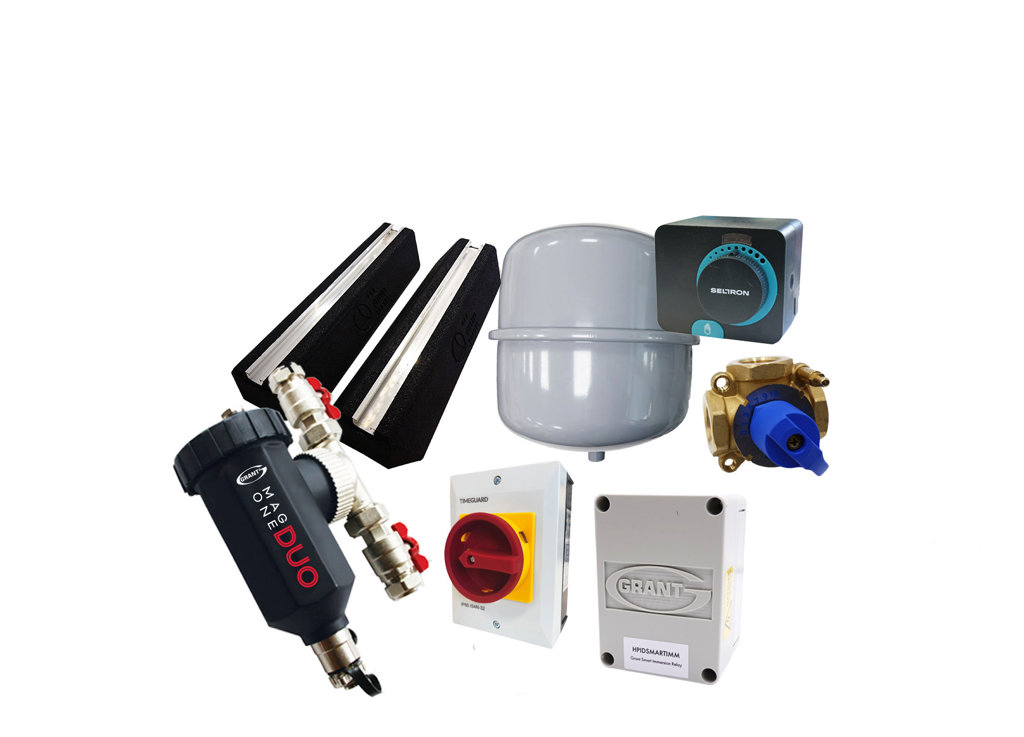

  • Installation Pack Q (HPIDR32PACKQ) is suitable for Open Loop Direct systems using a 3 Port Diverter and Mixing Valve and a non pre-plumbed cylinder*
  • Installation Pack R (HPIDR32PACKR) is suitable for Open Loop Direct systems using a 3 Port Diverter Valve and a non pre-plumbed cylinder*

*Please note, a 30L external volumiser is available as an optional component when there is insufficient system volume (HPIDVOL30EXT or HPIDVOL30EXT6). For Packs P, Q and R, where hydraulic separation is needed, please order the Grant System Combined Volumiser/Low Loss Header as an optional component (HPIDSYSLLHKIT)

Please click here to download a full summary of the contents of each of these Installation Packs.
