Vortex Boiler House

a Heating

5 Year guarantee^*

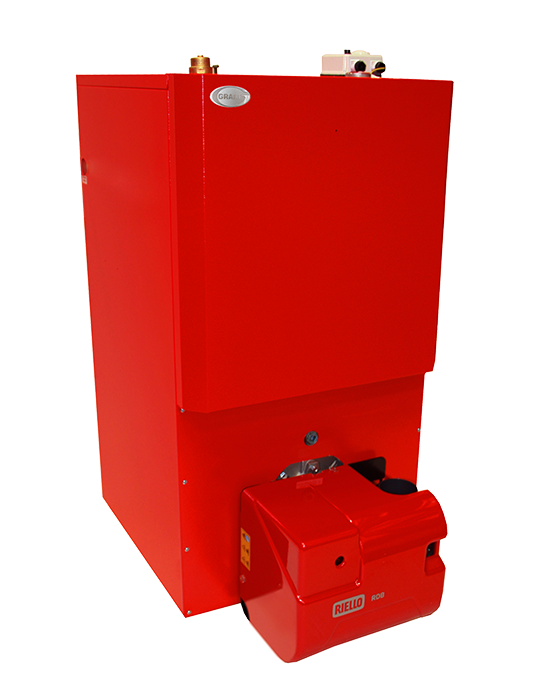

Featuring an externally mounted Riello RDB burner and dual thermostat, Grant Vortex Boiler House models are ideal for garage, cellar and plant room installations.

The Grant Vortex Boiler House uses the same unique heat exchanger and turbulator baffle system used in Grant’s other oil boilers. Compact in size and with a distinctive red casing, these Boiler House models can be flued in the same way as utility models. Efficient and reliable, a Boiler House boiler is ideally suited for those installations when a utility boiler is not the best solution.

Product
Information

Features & Benefits

Awards & Accreditations

Case Studies

Specifications

Downloads

Features & benefits

*5 year guarantee when installed by a G1 Installer (Terms and Conditions apply)
Models include outputs ranging from 15kW up to 70kW
Achieves space heating efficiencies of up to 91.7%
Encompass Riello’s latest low NOx burner alongside Grant’s patented boiler technology
Low running costs
Distinctive red powder coated casing
Simple and quick to install with no complicated wiring or plumbing
Compatible with Grant EZ-Fit flue systems and all the Boiler House models can be flued in the same way as utility models, further enhancing the installation options
This range is biofuel compatible (depending on the type of biofuel and % blend)

Awards & Accreditations

Case Studies

Grant boilers combine choice, quality and service to be an installer’s favourite oil boiler brand

Case Study

A Grant HVO compatible oil boiler has been installed at a primary school to help it lower its carbon emissions

Primary school in Cornwall makes the swap to HVO biofuel

Case Study

An app for heating engineers

Grant boilers are supplied with their supporting Installation Manual and User Instructions but, if these get lost or misplaced, installers can turn to the TechBox app. The TechBox is app is home to all of Grant’s current and historic product manuals and user guides. Heating engineers can simply search, select and download the manual they need while onsite, directly from the app either with or without WiFi connection.

Read more about the Grant TechBox app here.

Specification

Product code	Model	Set Output	Max Output	Weight	Height	Width	Depth	Efficiency	NOx Emissions	Tappings Flow/Return	Burner	Energy Rating	Load Profile	Energy Label	Product Fiche
VTXBH15/26	Grant Vortex Boiler House 15-26	21kW	26kW	125kg	891mm	431mm	594mm	91.70	Class 2	1" BSPmm	Riello RDB	a Heating	-	View	View
VTXBH26/46	Grant Vortex Boiler House 26-46	41kW	46kW	145kg	877mm	455mm	591mm	90.06	Class 2	Return - 1" BSP / Flow - 28mm	Riello RDB	a Heating	-	View	View
VTXBH46/70	Grant Vortex Boiler House 46-70	64kW	70kW	301kg	1078mm	542mm	765mm	91.66	Class 3	1¼" BSPmm	Riello RDB	a Heating	-	View	View

Downloads

Grant Vortex Oil Range Brochure – November 2024

Grant Vortex Boilerhouse (installer) - UK - DOC 0128 - Rev 2.0 - July 2022

Grant Vortex Boilerhouse (user) - UK - DOC 0165 - Rev 1.0 - January 2020
