EZ-Fit Internal High Level Balanced Flues (White System)

EZ-Fit Internal High Level Balanced Flues (White System)

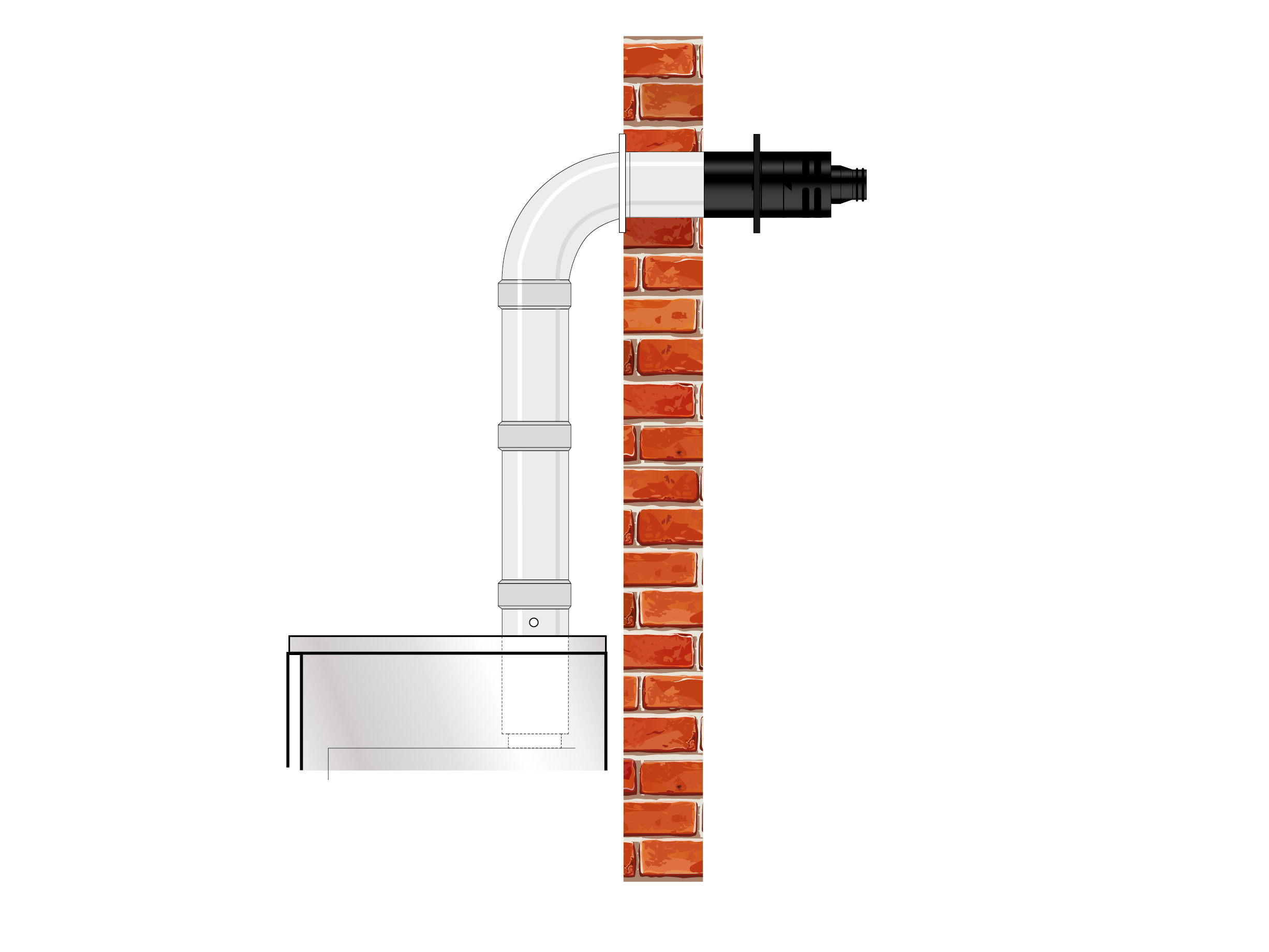

The high level balanced flue kits feature the same boiler connections as the yellow system low level flue. This unique connection system on the high level flue ensures easy assembly thereby reducing installation costs.

Features & benefits

Flexible design
The kits may be extended horizontally and vertically. It is now possible to create off sets in standard high level flue systems by using our 45° elbows and extension kits – increasing the versatility of this range.

 High Level balanced flues can be extended to a maximum of 10 metres overall, using the ex tension kits illustrated on page 5. Deduct one metre for each additional 45° elbow used (maximum 6 elbows).

  • Possible to create offsets in straight flue runs by using our 45° elbows and extensions
  • Maximum total flue length = 10 metres (deduct 1 metre for each additional 45° elbow used)
  • Flue may be extended horizontally and vertically
  • Unique connection system ensures easy assembly
  • Extensions available in 225mm, 450mm or 950mm fixed lengths and a 275-450mm adjustable length
  • Supplied as a complete kit
  • 150mm flue pipe diameter for boilers up to 26kW
  • 180mm flue diameter for boilers from 26-70kW
  • Terminal guard (not supplied) required when the flue terminates less than 2 metres
