Grant VortexAir Range

5 Year guarantee*

Grant VortexAir Range

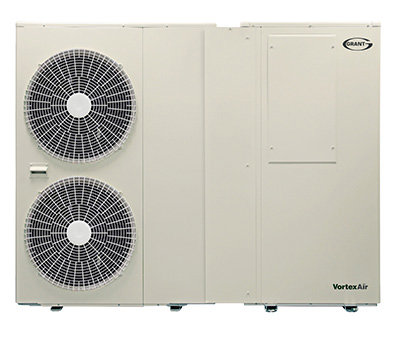

The Grant VortexAir Hybrid couples together a Grant VortexBlue condensing low NOx blue flame oil-fired boiler with an Aerona³ air source heat pump. Available in two models, the VortexAir Hybrid cleverly combines a traditional fossil fuel source with the green advantage of a heat pump, providing a renewable solution to boiler replacements.

a+++ Heating a Water

Features & benefits

Using just a single flow and return connection into the house, the VortexAir Hybrid incorporates a 17kW Aerona³ R32 air source heat pump with either a 15/21kW or 21/26kW ultra low NOx VortexBlue oil boiler. This unique arrangement allows the oil boiler to be installed first as a stand-alone unit, either internally or externally, replacing an older oil-fired appliance and providing immediate heat and hot water for the householder.

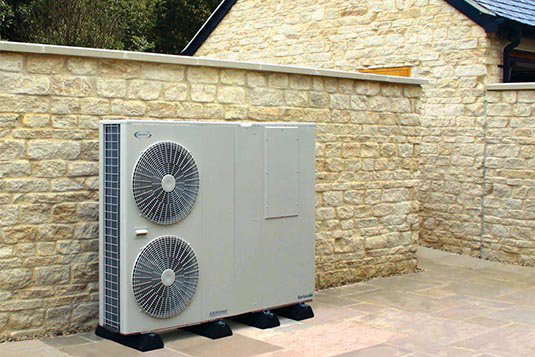

The heat pump is then installed externally and coupled via a simple plumbing and electrical arrangement to the oil boiler. The heat pump can be installed at the same time as the boiler or it can be fitted as part of a two-stage installation which is hugely beneficial in distress purchase situations. When a quick replacement heating solution is required, the VortexAir enables householders to rapidly restore their home heating with the boiler and then later incorporate an alternative fuel source with the heat pump element.
The Grant VortexBlue oil boiler utilised within the hybrid is renowned for its high efficiency, reliability and ultra low NOx emissions. This cleaner oil-fired boiler technology combined with the green credentials of the Aerona³ heat pump results in an innovative hybrid solution which delivers the best of both worlds. Homeowners can introduce renewable technology into their home while also having the peace of mind that comes with the back-up heating provided via the boiler.

Read more

The Grant VortexAir hybrid has been designed to maximise overall system efficiency with the use of an advanced control system. Automatically monitoring the system temperatures, the unit will seamlessly switch to the most effective heating mode, whether that be heat pump, oil, or a combination of both.

The four unique operating modes incorporated into the Grant VortexAir’s controller are as follows:

Mode 1 – Heat Pump only at lower flow temperatures between 35°C – 55°C for space heating (DHW fixed at 60°C)

Mode 2 – Heat Pump and Oil Boiler combined at lower flow temperatures between 40°C – 50°C

Mode 3 – Heat Pump and Oil Boiler combined at higher flow temperatures up to 70°C

Mode 4 – Oil Boiler with higher flow temperatures up to 70°C and little Heat Pump contribution

  • *5 year guarantee when installed by a G1 installer. Subject to T&C's
  • Boiler and heat pump can be installed separately
  • Householder always has back-up heating
  • Incorporates the latest Grant Aerona³ heat pump and blue flame technology
  • Option to manually switch between hybrid and oil
  • Meter ready, fully pre-plumbed and wired
  • Heat pump eligible for the RHI
  • Heat pump ErP rating A+++
  • Oil boiler ErP rating A
Why join the hybrid revolution?

Why join the hybrid revolution?

 Each year, thousands of older oil boilers are changed, most often as distress purchases and requiring a quick replacement heating solution. In these situations, there is often very little opportunity to choose an alternative fuel source, such as a renewable technology, as the work involved in updating the system would leave the property without heating for an extended period of term. Consequently, a different approach to resolving this problem is therefore required – for example, a hybrid.If a householder already has an oil boiler and is thinking of changing to a heat pump, the VortexAir allows them to make the change seamlessly without the added cost of having to resize and replace radiators, or possibly being without heating while the heat pump is being installed. The VortexAir’s unique arrangement allows the oil boiler to be installed first (either internally or externally) as a stand-alone unit replacing an older oil-fired appliance and providing the household with immediate heat and hot water. The heat pump is then installed externally (either joining the externally located oil boiler and creating a single unit, or being located outside of the building where the boiler is located inside), completing this two-stage installation with minimum disruption to the home.

The Grant VortexAir joins the benefits of an air source heat pump with the latest blue flame oil boiler technology, offering homeowners the best of both worlds.





G-Cert Certification Scheme

Unlock all the benefits of a Grant renewable heating system with MCS certification.

Find out more

Find a merchant

Use our national merchant search to find a Grant supplier near you

How can we help

Use our online enquiry form to send us any comments or questions

Contact us

FAQs

Your questions, answered

View

Specification

Product code
Model
Weight
Height
Width
Depth Max/Min
Boiler Output
Heat Pump Capacity
Heat Pump Power Input
Heat Pump SCOP 35°C
Efficiency
NOx Emissions
Heat Pump Running Current (Max)
Heat Pump Refridgerant
Heat Pump Operating Voltage
Heat Pump Flow/Return Tappings
Heat Pump Min/Max Operating Temperatures - Air
Heat Pump Sound Power Level 1M
Heat Pump Sound Pressure Level at Neighbouring assessment position
Flow/Return Tappings
ErP Rating
HPIDAIRR32 Grant VortexAir 15/21kW Blue Flame Oil Boiler and 17kW Heat Pump Hybrid inc. EZ90BFKIT 280kg 1420mm 1786mm 470mm 15-21kW 17kW 3.90kW 4.19 - - 25.3 R32 230V 1 1/4"BSPF -20/43°C 63Db(a) 37Db(a) 1 1/4"BSPF a+++ Oil Boiler a+++ Heat Pump
HPIDAIR2R32 Grant VortexAir 21/26kW Blue Flame Oil Boiler and 17kW Heat Pump Hybrid inc. EZ90BFKIT 282kg 1420mm 1786mm 471mm 21-26kW 17kW 3.90kW 4.19 - - 25.3 R32 230V 1 1/4"BSPF -20/43°C 63Db(a) 37Db(a) 1 1/4"BSPF a+++ Oil Boiler a+++ Heat Pump
VTXBFAIR Grant VortexAir 15/21kW Blue Flame Oil Boiler 149kg 1420mm 700mm 500mm 21kW - - - - - - - - - - - - - a Oil Boiler
VTXBFAIR2 Grant VortexAir 21/26kW Blue Flame Oil Boiler 151kg 1420mm 700mm 500mm 26kW - - - - - - - - - - - - - a Oil Boiler
