Grant CombiSol

Grant CombiSol

The Grant CombiSol is designed to integrate existing heating installations involving mains pressure combination boilers with solar thermal systems simply and cost effectively, and is uniquely compatible with most combi boilers and fuel types.

Features & benefits

With solar thermal systems increasing in popularity in the UK and many new and existing heating installations involving mains pressure combination boilers, a simple, cost effective solution to integrate these two technologies is a must. The Grant CombiSol is designed to do just that, and is uniquely compatible with most combi boilers and fuel types. It works by accurately controlling the outlet temperature of stored secondary hot water produced by a solar thermal system, directing the flow either straight to the hot water outlet, or via the combi boiler to the same outlet with a seamless changeover. There are additionally minimal temperature fluctuations at the taps.

The GrantCombiSol also accurately regulates the inlet water temperature to the combination boiler, therefore installing this unit with any combi boiler should not pose a problem, as the mixed water into the appliance is limited to a maximum of 24°C.

Read more

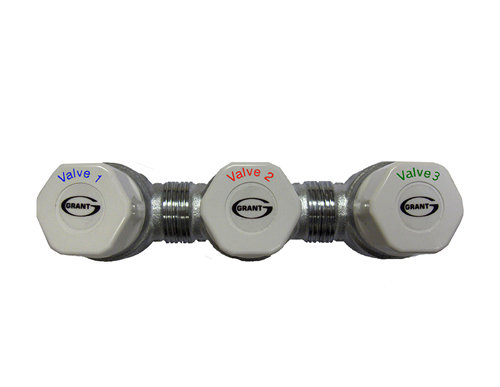

The unique thermostatic change-over valves provide a safe and simple solution for adding renewable energies to the home without having the added expense of changing your central heating appliance. It is important to ensure that the combination boiler can accept an incoming cold mains water temperature of up to 24°C. If in doubt, contact the boiler manufacturer. Grant’s extensive research and development programme has refined the use of each valve (marked clearly on the white cap) to give optimum control of hot water delivery to your taps.

  • Accurately regulates the inlet water temperature to the combination boiler
  • Integrates the existing heating installations with a solar thermal system safely and simply
  • Cost effective solution
  • Optimum control of hot water delivery to your taps.
  • Compatible with most existing heating systems
