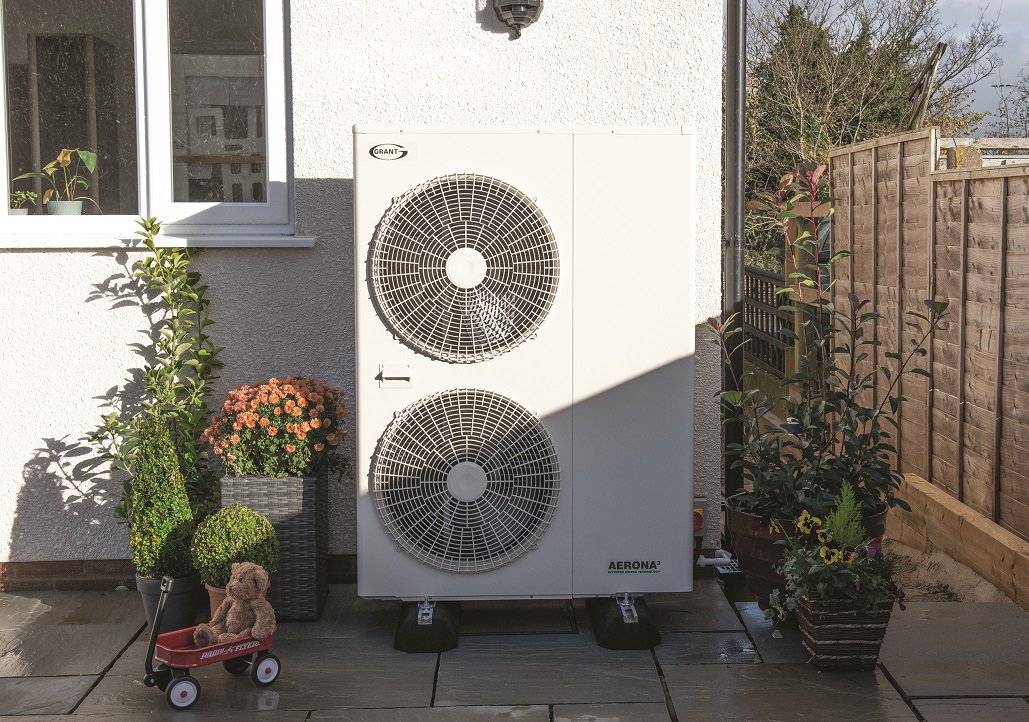

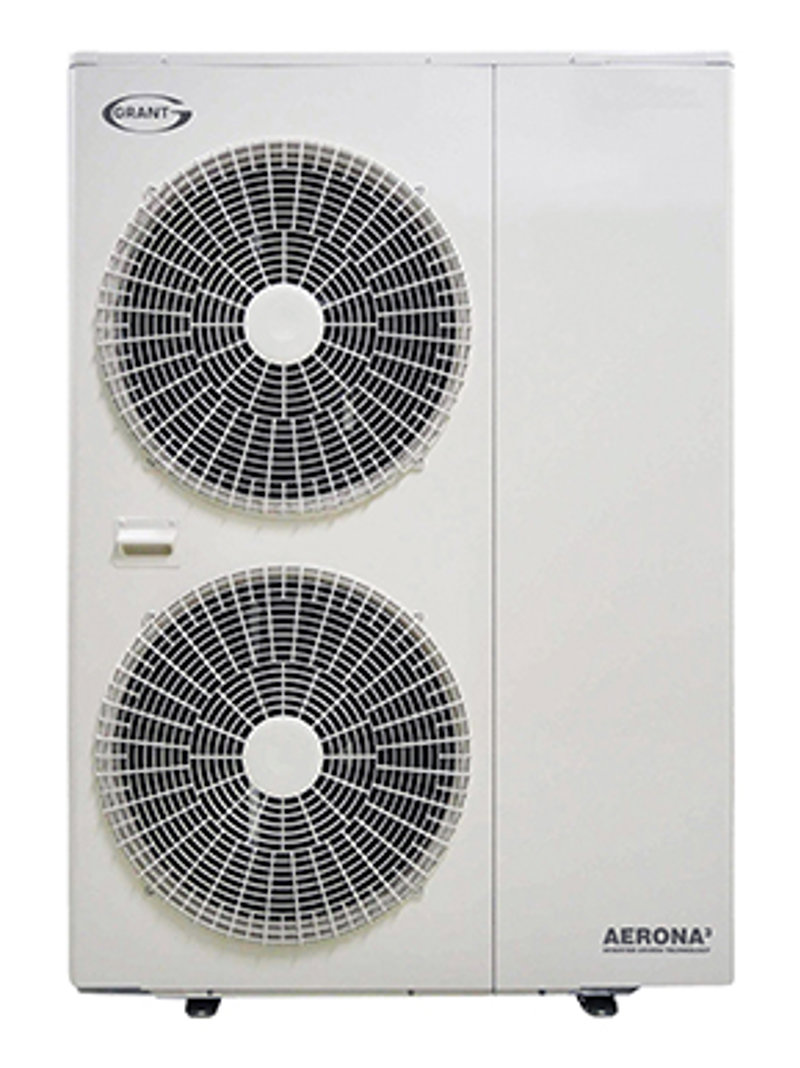

Grant Aerona³ R32 Air Source Heat Pump Range
The Aerona³ R32 inverter driven air source heat pump will be expanding in July 2019 to include models from 6kW up to 17kW. As its name suggests, this heat pump uses the more environmentally friendly R32 refrigerant which makes for a cleaner heat pump while still delivering excellent performance.
a++ Heating a WaterFeatures & benefits
Grant’s latest ASHPs uses R32 refrigerant which has a considerably lower Global Warming Potential (GWP) compared to other typical heat pump refrigerants such as R410, thus complying with the upcoming legislative targets.
R32 is a single-component refrigerant which means it has no temperature glide. Having just one molecule in its formation, R32’s saturated liquid and vapor temperatures are the same and, by removing the risk for the refrigerant to suffer from glide, the system can recharge and recycle with greater ease, making it more efficient.
The Aerona³ R32 heat pumps are Grant’s greenest heat pumps yet. Each model also incorporates the familiar features that engineers have come to associate with the Grant Aerona brand. All of the Aerona³ R32 heat pumps are single phase, DC inverter driven ASHPs incorporating in-built weather compensation and a base tray heating element to prevent ice formation.
Monobloc in design, the Aerona³ R32 is suitable for use with S-Plan heating control systems and is simple to work with for installation and maintenance. The Aerona³ R32 models have a compact footprint and operate with low noise levels. They therefore have minimal impact on their surrounds both aesthetically and acoustically, something which is of great benefit to end-users.
- *5 year guarantee when installed by a G1 installer. Subject to T&C's
- Quiet mark awarded (HPID13R32, HPID17R32)
- DC inverter driven
- In-built weather compensation
- Base tray heating element
- Suitable for use with S-Plan heating control systems
- Compact footprint
- Single phase
- ErP rating A+++ as of September 2019
F-Gas Regulations and R32 Gas
The 2014 EU Fluorinated Greenhouse Gas (F-Gas) Regulations is legislation designed to phase out the use of hydrofluorocarbons, with the introduction of a series of targets which are designed to limit the use of gases which have the highest Global Warming Potential (GWP). Grant’s latest ASHP uses R32 refrigerant which has a GWP which is considerably lower than other typical heat pump refrigerants such as R410, thus complying with the upcoming legislative targets.
In addition to having a lower GWP figure of 675, R32 is a single-component refrigerant which means it has no temperature glide. Refrigerant blends that have two or more components exhibit temperature glide but as R32 only has one molecule in its formation, its saturated liquid and vapor temperatures are the same. By removing the risk for the refrigerant to suffer from glide, the system can recharge and recycle with greater ease, making it more efficient.
Find an engineer
Search our extensive engineer network and locate a technician in your area
Government incentives
Government initiatives and legislation are designed to support the installation of efficient heating systems and sustainable technologies.
Find out moreFrequently asked questions
Your questions, answered
Glossary
Summary of key industry words and definitions
Find a user manual
Get the latest Grant brochures, info sheets and manuals from our download centre
Extend your warranty
Peace of mind on your Grant appliance, guaranteed.
Specification
Product code |
Model |
Weight |
Height |
Width |
Depth |
SCOP 35°C |
ErP Rating |
Energy Label |
Product Fiche |
|---|---|---|---|---|---|---|---|---|---|
| HPID6R32 | Grant Aerona³ 6kW R32 Inverter Driven Air Source Heat Pump | 51kg | 675mm | 898mm | 379.4mm | 4.62 | a++ | View | View |
| HPID10R32 | Grant Aerona³ 10kW R32 Inverter Driven Air Source Heat Pump | 70kg | 882mm | 874mm | 405mm | 5.22 | a++ | View | View |
| HPID13R32 | Grant Aerona³ 13kW R32 Inverter Driven Air Source Heat Pump | 99kg | 1418mm | 1024mm | 403mm | 5.41 | a++ | View | View |
| HPID17R32 | Grant Aerona³ 17kW R32 Inverter Driven Air Source Heat Pump | 118kg | 1418mm | 1024mm | 403mm | 4.54 | a++ | View | View |
Downloads
Accessories

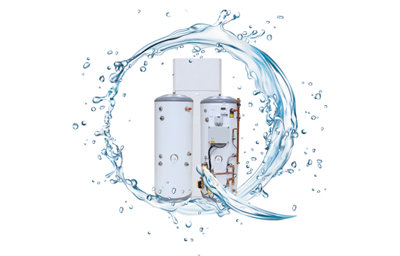

Grant High Performance Wave Cylinders
- Fast recovery stainless steel corrugated coils (all indirect models)
- Immersion heater
- Specifically matched to our Grant Aerona³ air to water heat pump range
Domestic hot water (DHW) boost kit
- Automatically switches on the cylinder’s immersion element
- Automatic bacteria protection
- A requirement of SAP - should be fitted with every heat pump/cylinder installation.
Related products

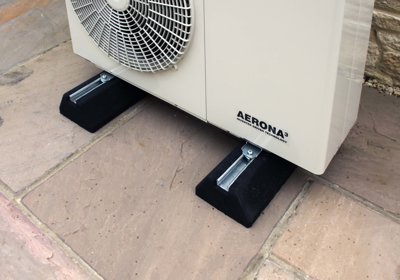

Grant Aerona³ accessories
- Designed specifically for the Aerona³ heat pump models.
- Available individually or as part of a pack
