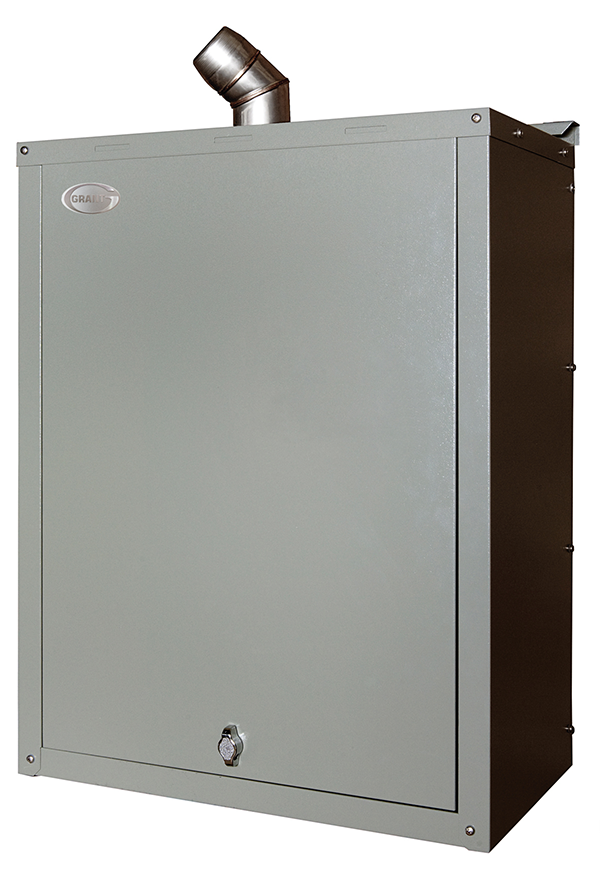

Vortex Eco: External Wall Hung

5 Year guarantee*

Vortex Eco: External Wall Hung

Grant’s Vortex wall hung oil-fired boiler range comprises four internal and four external models.

Available in outputs ranging from 12-21kW, in both sealed system and open-vented system variants, these new appliances are pre plumbed and encompass Grant’s patented Vortex stainless steel heat exchanger and turbulator baffle system.

a Heating

Features & benefits

Vortex Eco wall hung models feature the latest version of the Grant Vortex stainless steel heat exchanger and baffle system and come in outputs ranging from 12–21kW with sealed system options.

External wall hung models come with a factory fitted low level flue, robust external powder coated paint finish, built-in boiler frost protection, mains isolating switch and a test switch.

Read more

Sealed System Models

Grant Vortex Eco Wall Hung boilers are also available in sealed system versions. These include a factory fitted expansion vessel, filling loop, pressure gauge, automatic air vent, pressure relief valve and high efficiency circulating pump, enabling boilers to be installed without the need for a feed and expansion tank in the loft.

  • Compliant with September 2018 low NOx legislation
  • Outputs ranging from 12–21kW
  • 91.6 – 91.9% Gross SAP2009 annual efficiency
  • 5 year guarantee when installed by a G1 accredited installer (T&C’s apply)
  • Exceptionally quiet operation
  • High quality external powder coated case
  • Wall mountable
  • Unique Grant Vortex stainless steel heat exchanger
  • Multi-directional flue factory fitted on external models
Low NOx ready

Low NOx ready

On 26th September 2018, the next phase of the EU’s Energy-related Products Directive will come into effect. New legislation will set maximum nitrogen oxides (NOx) emission levels that space heaters will need to meet, reducing the overall NOx emissions produced from heating. For oil-fired boilers, the NOx emissions target will be a maximum of 120mg/kWh so all oil boilers placed on the market by the manufacturer on or after 26th September will need to be compliant.

 One of the overarching objectives of the new legislation is to help improve the air quality by reducing pollution. In response to both Government regulations and a growing demand from homeowners, manufacturers have continuously explored ways to make their products more efficient and sustainable. The good news is that advances with burner technology coupled to Grant’s efficient boiler designs have enabled all of our Vortex Pro and Eco boiler ranges to achieve these new targets with virtually no visible change to the existing line up.

G-Cert Certification Scheme

Unlock all the benefits of a Grant renewable heating system with MCS certification.

Find out more

Looking to develop your product knowledge?

Our award winning Training Academy allows us to offer a wide range of training courses including Grant product training and industry qualifications.

Find out more

Specification

Product code
Model
Set Output
Max Output
Weight
Height
Width
Depth
Efficiency
NOx Emissions
Energy Rating
Load Profile
Energy Label
Product Fiche
VTXOMWH12/16 Grant Vortex Eco Wall Hung External 12-16 14kW 16kW 93kg 837mm 635mm 350mm 90.13 Class 2 a Heating - View View
VTXOMWH16/21 Grant Vortex Eco Wall Hung External 16-21 18.7kW 21kW 93kg 837mm 635mm 350mm 90.52 Class 2 a Heating - View View
VTXSOMWH12/16 Grant Vortex Eco Wall Hung External System 12-16 14kW 16kW 97kg 837mm 635mm 350mm 90.13 Class 2 a Heating - View View
VTXSOMWH16/21 Grant Vortex Eco Wall Hung External System 16-21 18.7kW 21kW 97kg 837mm 635mm 350mm 90.52 Class 2 a Heating - View View
