Vortex Eco: Internal Wall Hung

5 Year guarantee*

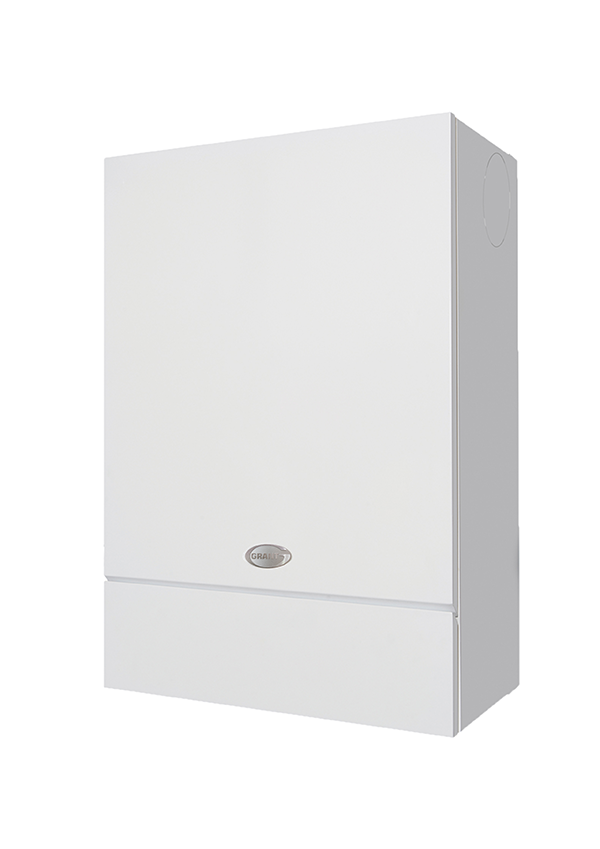

Vortex Eco: Internal Wall Hung

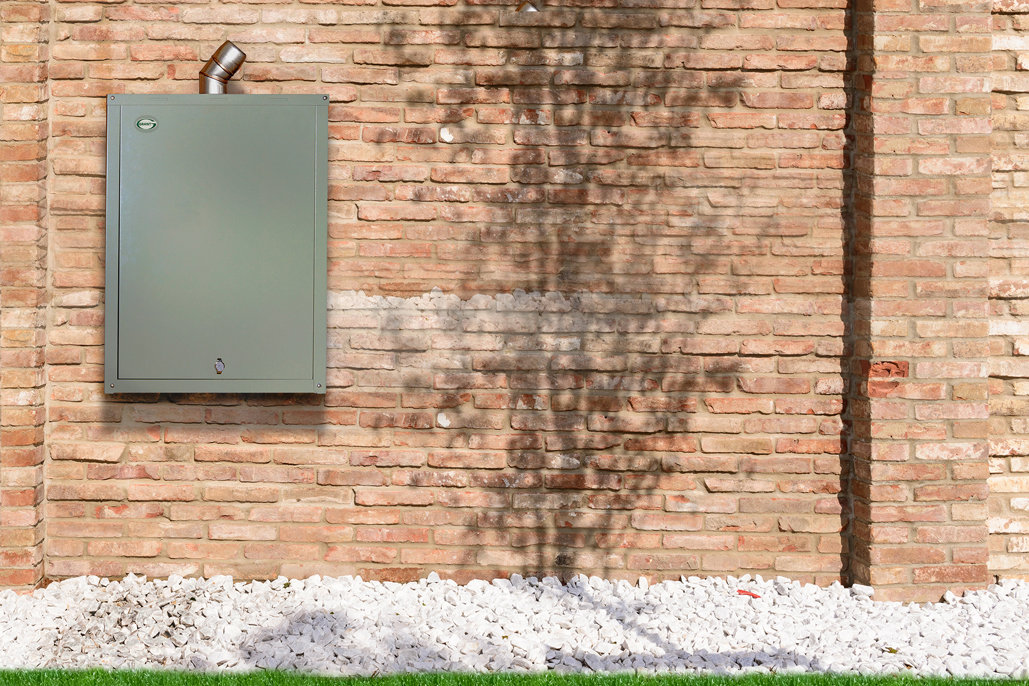

Grant’s Vortex wall hung oil-fired boiler range comprises four internal and four external models.

Available in outputs ranging from 12-21kW, in both sealed system and open-vented system variants, these new appliances are pre plumbed and encompass Grant’s patented Vortex stainless steel heat exchanger and turbulator baffle system.

a Heating

Features & benefits

Vortex Eco wall hung models feature the latest version of the Grant Vortex stainless steel heat exchanger and baffle system and come in outputs ranging from 12–21kW with sealed system options.

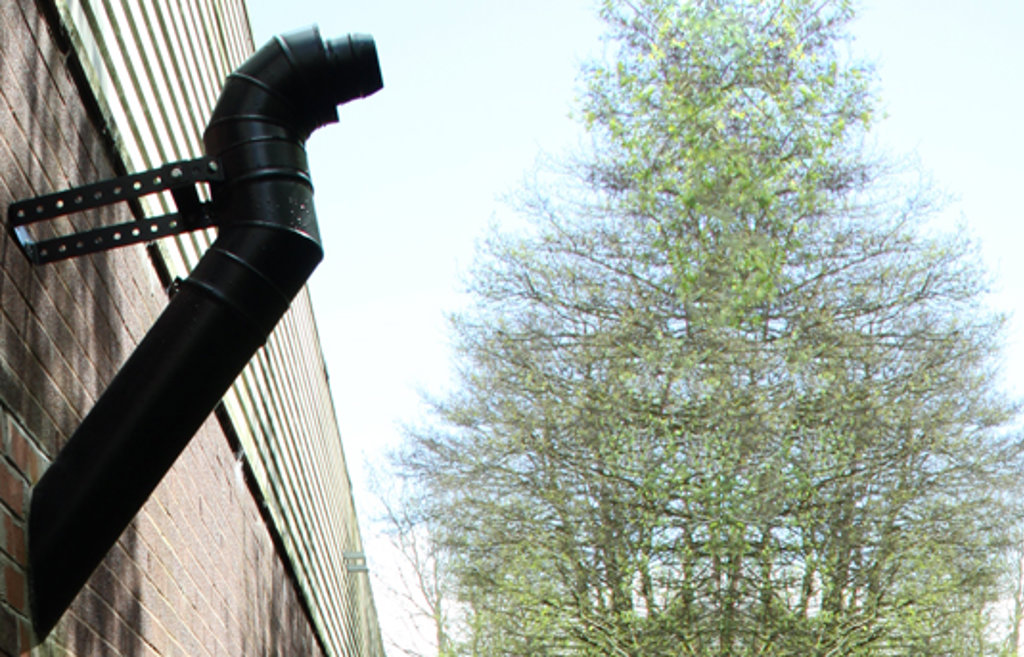

Internal wall hung models fit with Grant’s EZ-Fit low level, high level and vertical flue systems, so almost any installation situation can be catered for.

Read more

Sealed System Models

Grant Vortex Eco Wall Hung boilers are also available in sealed system versions. These include a factory fitted expansion vessel, filling loop, pressure gauge, automatic air vent, pressure relief valve and high efficiency circulating pump, enabling boilers to be installed without the need for a feed and expansion tank in the loft.

  • Award winning range
  • Outputs ranging from 12–21kW
  • 91.6 – 91.9% Gross SAP2009 annual efficiency
  • 5 year guarantee when installed by a G1 accredited installer (T&C’s apply)
  • Exceptionally quiet operation
  • Wall mountable
  • Unique Grant Vortex stainless steel heat exchanger
  • Compliant with September 2018 low NOx legislation
Low NOx Ready

Low NOx Ready

On 26th September 2018, the next phase of the EU’s Energy-related Products Directive will come into effect. New legislation will set maximum nitrogen oxides (NOx) emission levels that space heaters will need to meet, reducing the overall NOx emissions produced from heating. For oil-fired boilers, the NOx emissions target will be a maximum of 120mg/kWh so all oil boilers placed on the market by the manufacturer on or after 26th September will need to be compliant.

 One of the overarching objectives of the new legislation is to help improve the air quality by reducing pollution. In response to both Government regulations and a growing demand from homeowners, manufacturers have continuously explored ways to make their products more efficient and sustainable. The good news is that advances with burner technology coupled to Grant’s efficient boiler designs have enabled all of our Vortex Pro and Eco boiler ranges to achieve these new targets with virtually no visible change to the existing line up.

Help me find the right heating system

Find the right heating system for your home using our product configurator tool

Use tool

Find an engineer

Search our extensive engineer network and locate a technician in your area


Product code
Set Output
Max Output
NOx Emissions
Energy Rating
Load Profile
Energy Label
Product Fiche
VTXWH12/16 Grant Vortex Eco Wall Hung 12-16 14kW 16kW 91.1kg 842mm 630.5mm 335.5mm 90.13 Class 2 a Heating - View View
VTXWH16/21 Grant Vortex Eco Wall Hung 16-21 18.7kW 21kW 91.1kg 842mm 630.5mm 335.5mm 90.52 Class 2 a Heating - View View
VTXSWH12/16 Grant Vortex Eco Wall Hung System 12-16 14kW 16kW 98kg 842mm 630.5mm 355.5mm 90.13 Class 2 a Heating - View View
VTXSWH16/21 Grant Vortex Eco Wall Hung System 16-21 18.7kW 21kW 98kg 842mm 630.5mm 335.5mm 90.52 Class 2 a Heating - View View
